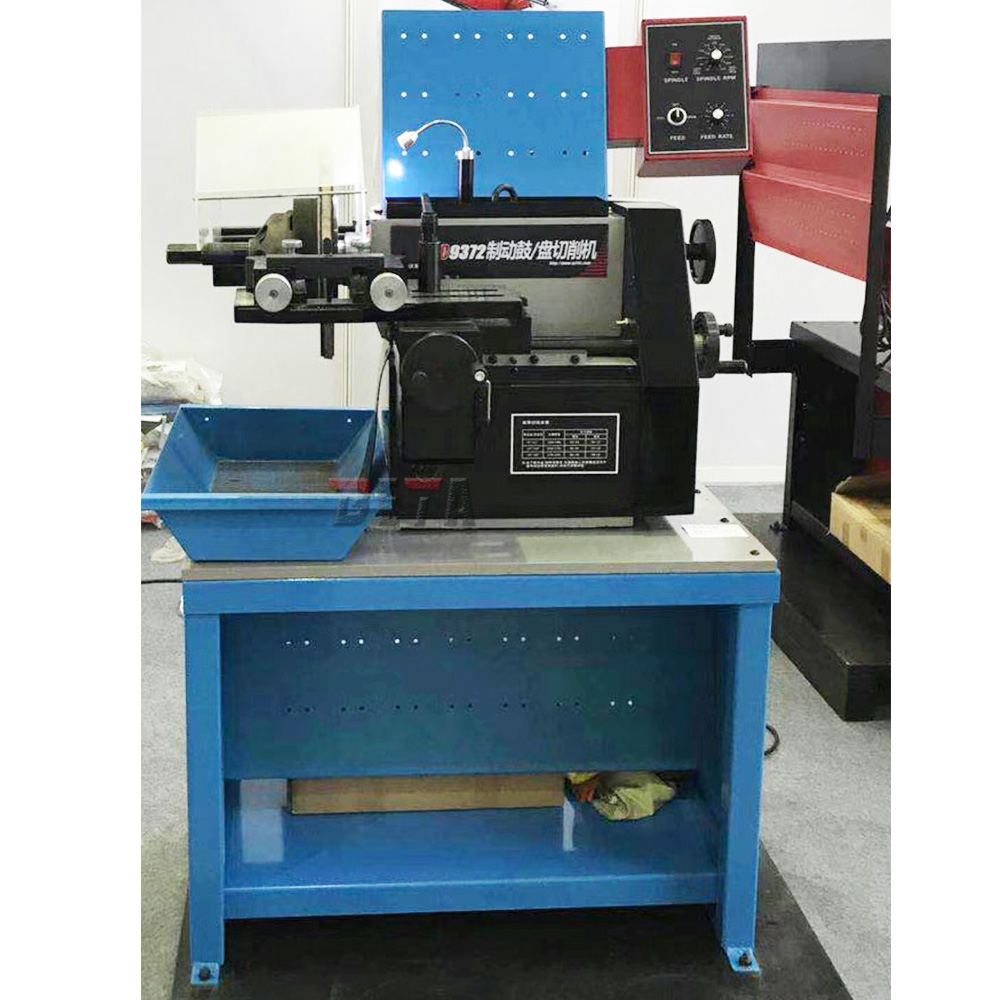

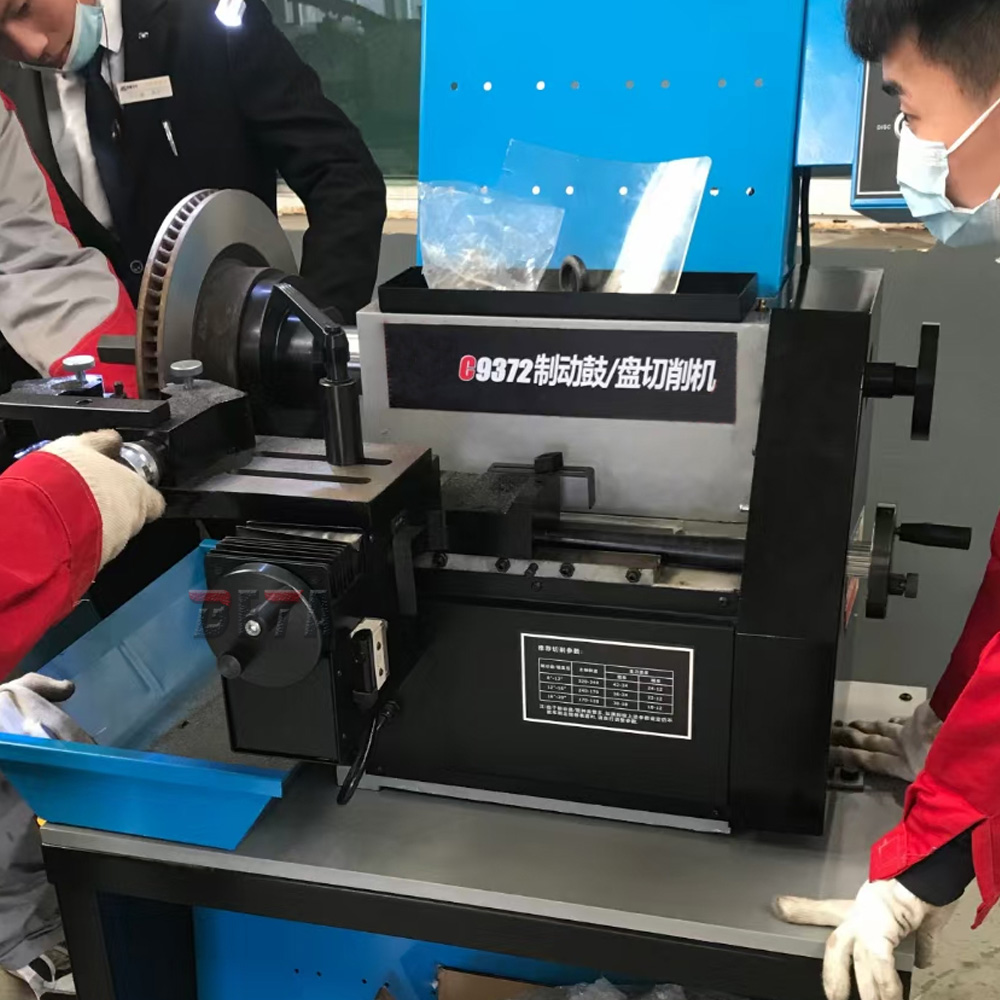

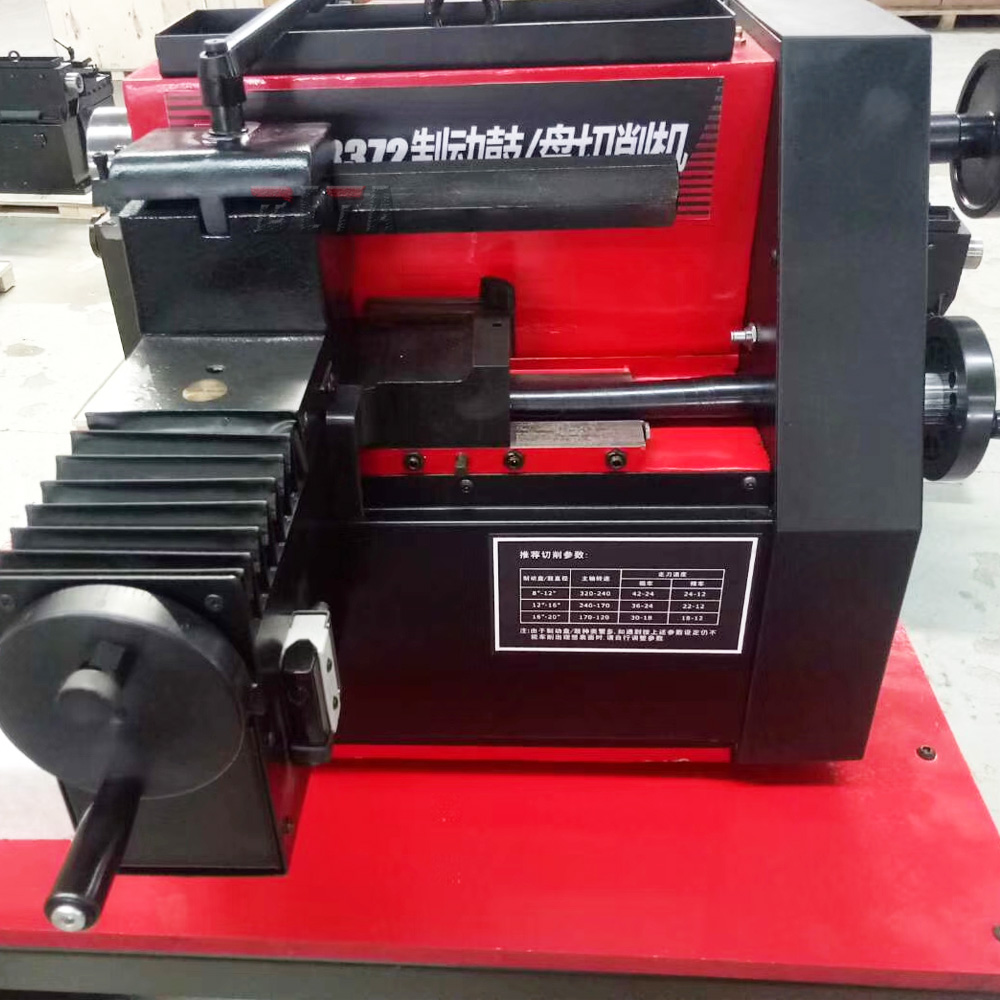

Brake drum and disc lathe

C9372

1. High Efficiency---A convenient design allows to quickly change from rotor to drum.
2. Perfect Finish---The perfect finish meets or exceeds all OEM specifications.
3. Simple Convenience---A tool tray and top board means you can easy to take tools
and adapters.
4. Infinitely Speed---Variable spindle speed and cross feed speed provide a perfect finish.
5. Single Pass---Positive rate tooling for optimum finish with a single pass.

INQUIRY

Features
Specification
CONFIGURATION

1. Using DC motor, stable performance and convenient control.

2. Both the spindle and the vertical and horizontal feed motions are driven by independent motors, and both are continuously variable.

3. Long blade life

4. Equipped with hanging boards and tool boxes, common accessories and tools are readily available, which is very convenient.

5. The accessories are complete and complete, which can meet the needs of a variety of models

6. This model is ideal maintenance equipment for 4S shops and small and medium-sized auto repair shops.

Model	C9372
Feed rates-rotor and drum	0”-0.026” (0mm-0.66mm)
Spindle speed	70-320rpm
Feed rates per minute	2.54” (64.5mm)
Spindle weight capacity (standard 1” arbor)	150 lbs (68kg)
Flywheel diameter	6”-24” (152-610mm)
Rotor diameter	4”-20” (102-508mm)
Max. Rotor thickness	2.85” (73mm)
Drum diameter	6”-19.5” (152-500mm)
Drum depth	6.5” (165mm)
Motor	110V/220V 50/60HZ
Dimension	1100x730x720mm
Gross weight	300 kg

Standard accessories:

26 pcs Adapter kit for 1/2 Ton

Optional accessories:

28 pcs Adapter kit for 3/4 Ton

23 pcs Adapter kit for 1 Ton
