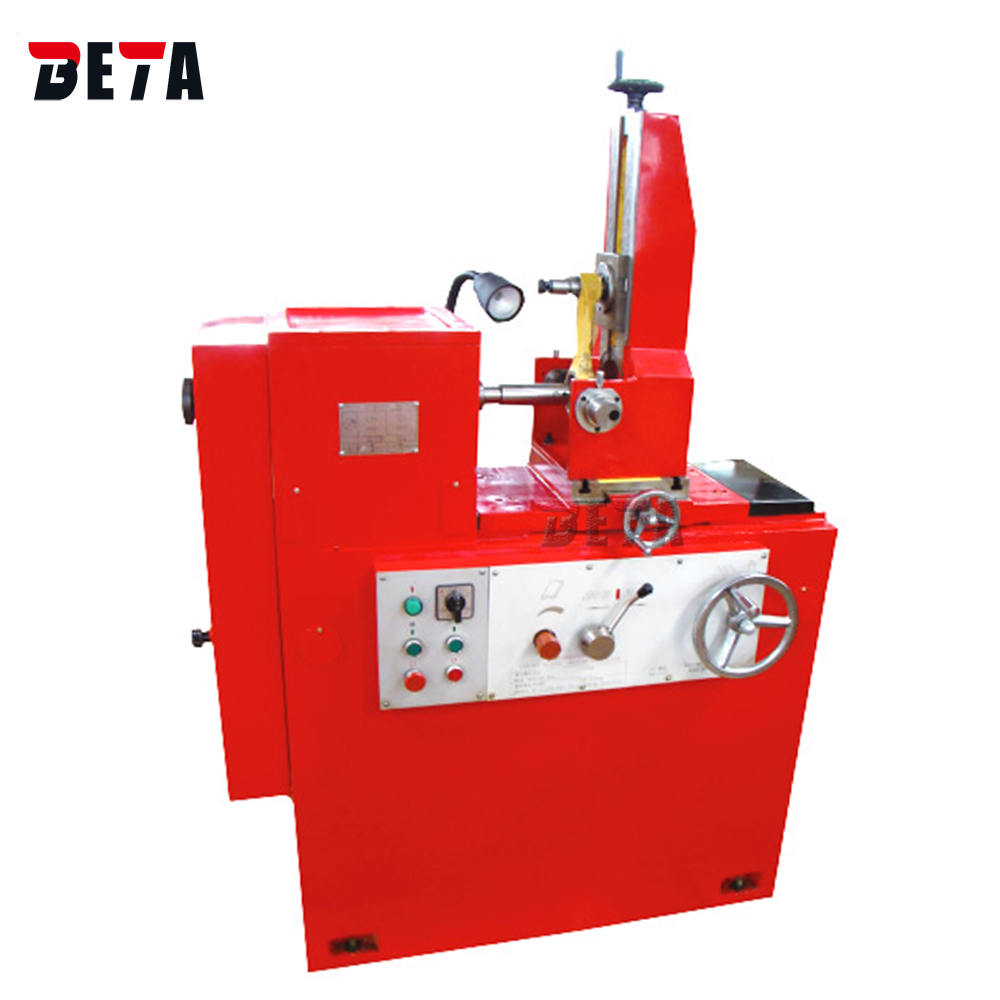

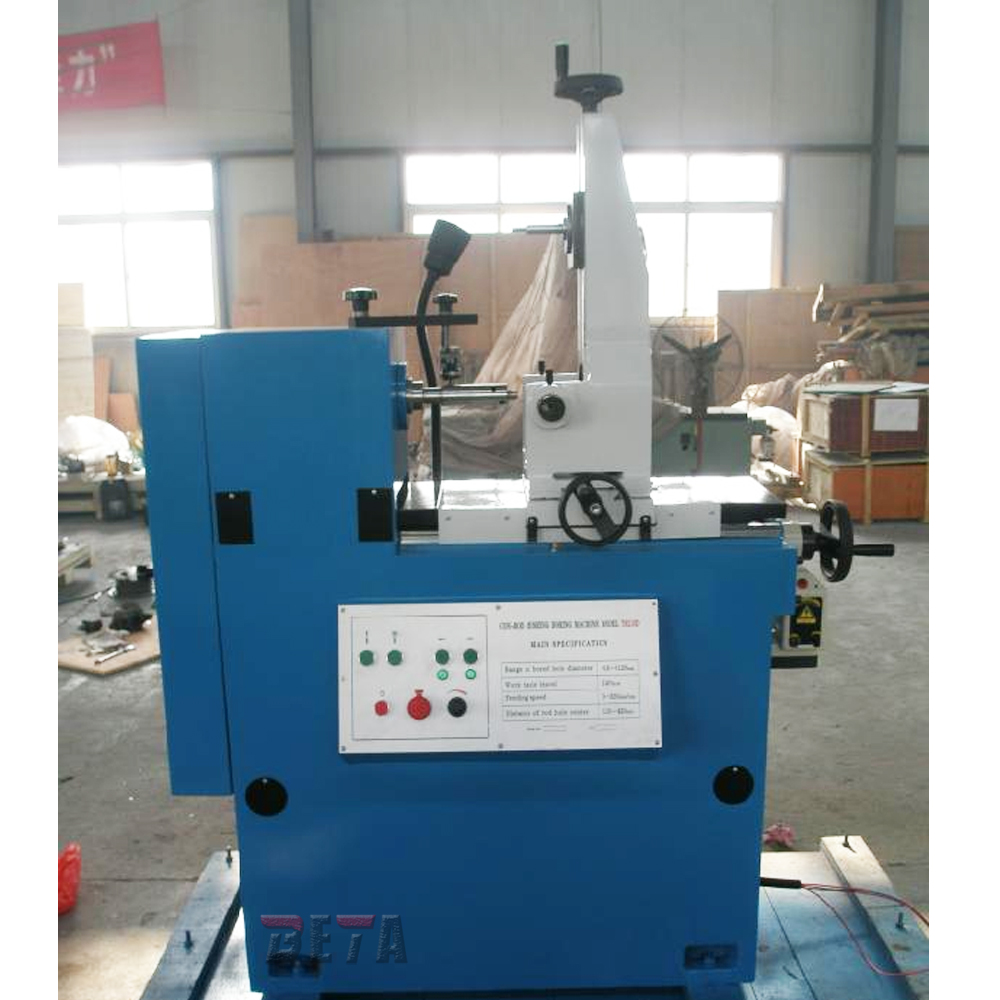

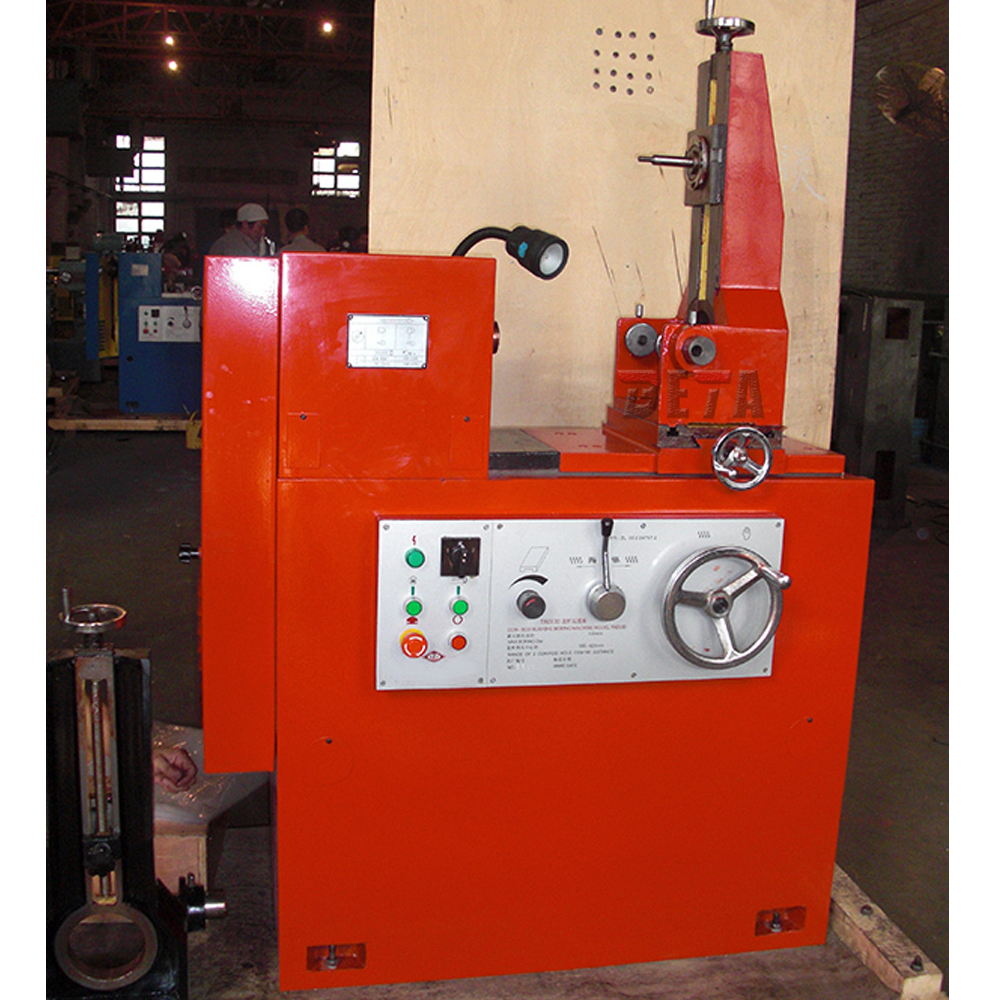

Con-Rod boring machine

T8210D

1. This machine equipped hydraulic automatic feeding system & mechanical manual feeding system. It can be changed easily.

2. Spindle driven by double speed motor, provide 4 steps speed for different hole and materials.

3. Equipped with complete accessories, measuring gauge.

MODEL	T8210D
Range of hole diameter to be bored	Φ16-100mm
Centre distance of link two hole	100-450mm
Longitudinal travel of worktable	220mm
Spindle speed	350 530 780 11800rpm
Feeding speed of worktable	16-250mm/min
Traveling speed of working	1800min
Main motor power	0.65/0.85kw
Motor power oil pump	0.55kw
Overall dimensions	1150 x 600 x 1450mm
Packing dimensions	1700 x 950 x 1700mm
N.W/G.W	0.7t/0.9t

Standard accessories:

expanding fixing core axle

increase tool plate

grinding wheel and grinding bar

measuring device

boring sleeve & centering sleeve

boring bar & boring cutters
