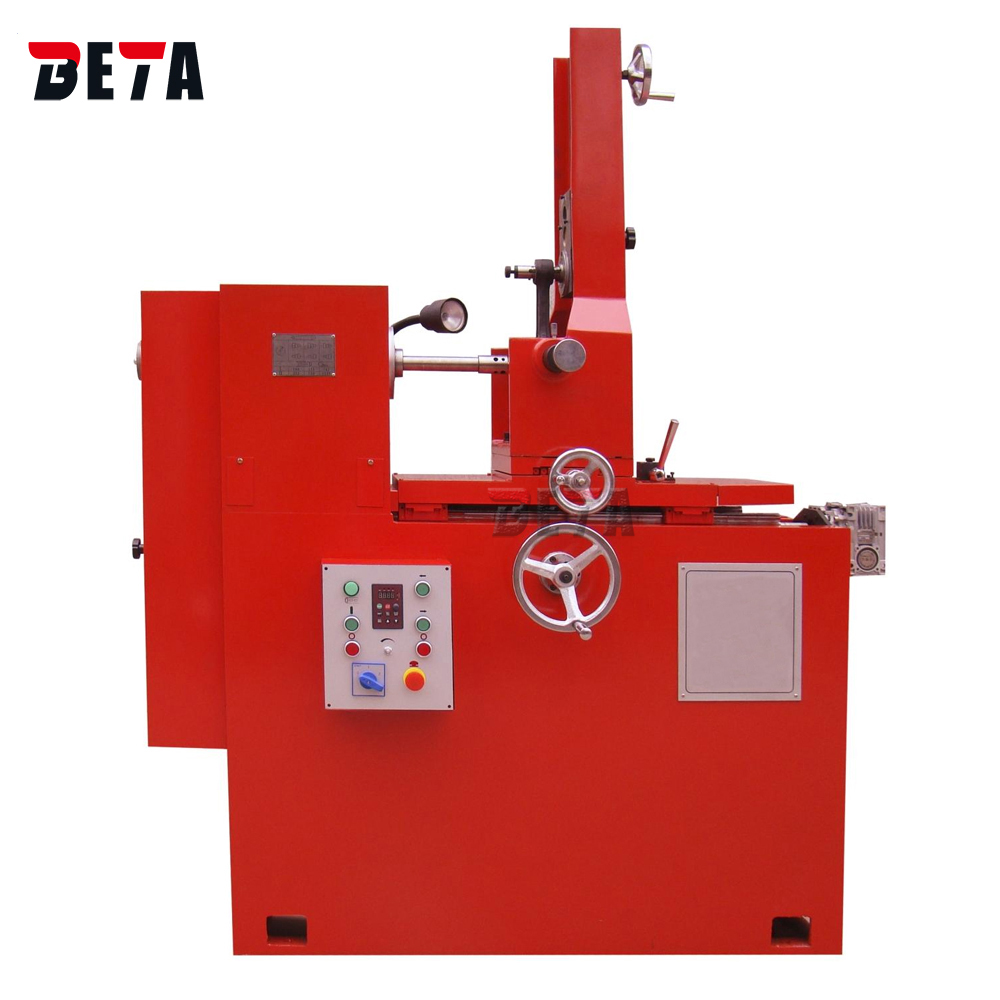

Con-Rod boring machine
T8216B
  • Features
  • Specification
  • CONFIGURATION

1. Automatic and manual table traverse controls both available for this machine, table is driven by reduction motor and ball screws. provide powerful and smooth travels.

2. Both carriage adopt linear guideway, it can provide higher precision and longer life.

3. Main spindle is driven by double speed motor and 3 level pulley transmission. provide total 6 speed range. it can fit different size and material needed.

4. Boring tools, centering gauge, tool setting gauge were all standard equipment, makes your work comes easy.


MODEL

T8216B

Range of hole diameter to be bored

Φ15-150mm

Centre distance of link two hole

85-600mm

Longitudinal travel of worktable

320mm

Spindle speed

140, 215, 355, 550, 785, 1220rpm

Feeding speed of worktable

16-80mm/min

Transverse adjusting amount of fixture

80mm

Main motor power

0.85/1.1kw

Overall dimensions

1600*700*1960mm

Packing dimensions

1950*1000*1580mm

N.W/G.W

900/1000 kg


Standard accessories:

expanding fixing core axle

increase tool plate

grinding wheel and grinding bar

measuring device

boring sleeve & centering sleeve

boring bar & boring cutters
