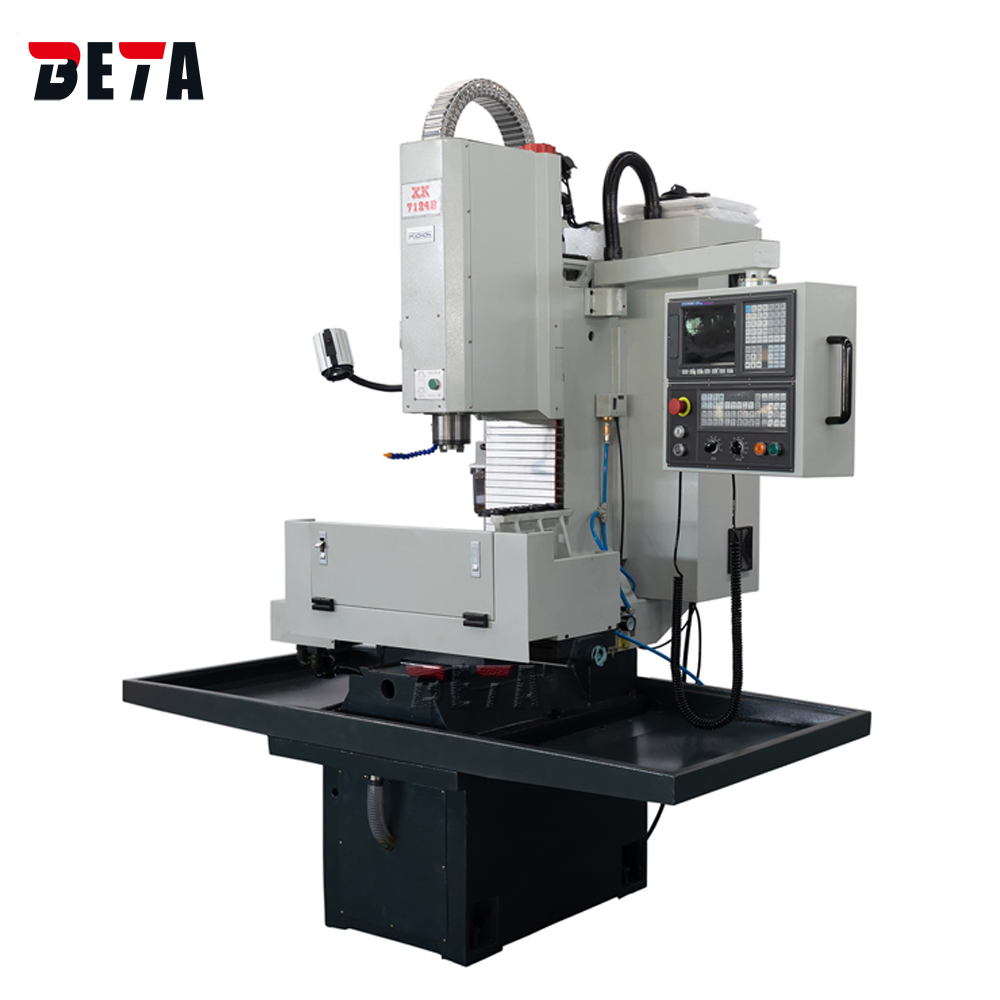

WhatsApp: +8618266249928WhatsApp: +8618266249928Features:
1.With tool-released and clamped pneumatically.
2.Machine stand made of steel
3.Semi-protection.
4.With SIEMENS 808DA controller.
5.Big size oil collecting assuring ground cleaning.
6.Suitable for Box parts , shell parts, disc-shaped parts machining.
7.With BT30 spindle, and high spindle speed 6000rpm with servo.
8.4 Pcs tool stations on worktable with high efficiency. It can finish all process of surface machining, hole machining and tapping by clamping workpiece only once.
| Model | XK7124 | XK7124B | |
| WORKTABLE | Size of worktable(L×W)(mm) | 800×240 | 800×240 |
| 900×240 Optional | 900×240 Optional | ||
| T slot(width ×qty×spaces)(mm) | 16×3×60 | 16×3×60 | |
| Max loading weight on worktable(kg) | 60 | 60 | |
| TRAVEL | X/Y/Z-Axis travel(mm) | 430x280x400 | 430x280x400 |
| 530x280x400 | 530x280x400 | ||
| Distance between spindle nose and table(mm) | 60-460 | 50-450 | |
| 50-550 | |||
| Distance between spindle center and column(mm) | 297 | 297 | |
| SPINDLE | Spindle speed(r/min) | 100-4000 | 100-6000 |
| Spindle taper | BT30 | BT30 | |
| Tool clamping way | Manual/Pneumatic | Pneumatic | |
| ATC capacity(optional) | no | 4pcs Simple ATC | |
| FEEDING | Feeding speed(mm/min) | 0-2000 | 0-2000 |
| Rapid feeding speed:X,Y,Z axis(m/min) | 6 | 6 | |
| ACCURACY | Positioning accuracy(mm) | 0.04 | 0.04 |
| Repeatability accuracy(mm) | 0.02 | 0.02 | |
| Min.set unit(mm) | 0.001 | 0.001 | |
| MOTOR | Main motor power (kw) | 1.5(A/C motor) | 2.2/3.7 |
| Feeding motor power:X/Y/Z Axis(kw) | 2001/1/1 | 1/1/1.5 | |
| TOOLS | Max.size of tool(mm) | Φ60x175 | Φ60x175 |
| Max.loading weight of Tool(kg) | 3.5 | 3.5 | |
| OTHERS | N.W(include machine stand)(kg) | 900 | 1000 |
| Overall size(L×W×H)(mm) | 1640x1205x1950 | 1640x1205x1950 | |
| Packing size(L×W×H)(mm) | 1900x1620x2480) | 1900x1620x2480 | |
| Loading amount(20") | 3sets | 3sets | |
Standard Accessories:
Taiwan Syntec CNC controller,
steel stand,
Coolant system,
Working lamp,
Tool-released and clamped pneumatically,
Automatic lubrication system,
Semi-protection,
4 pcs simple tool changer
Optional accessories:
GSK/Siemens 808DA CNC controller
