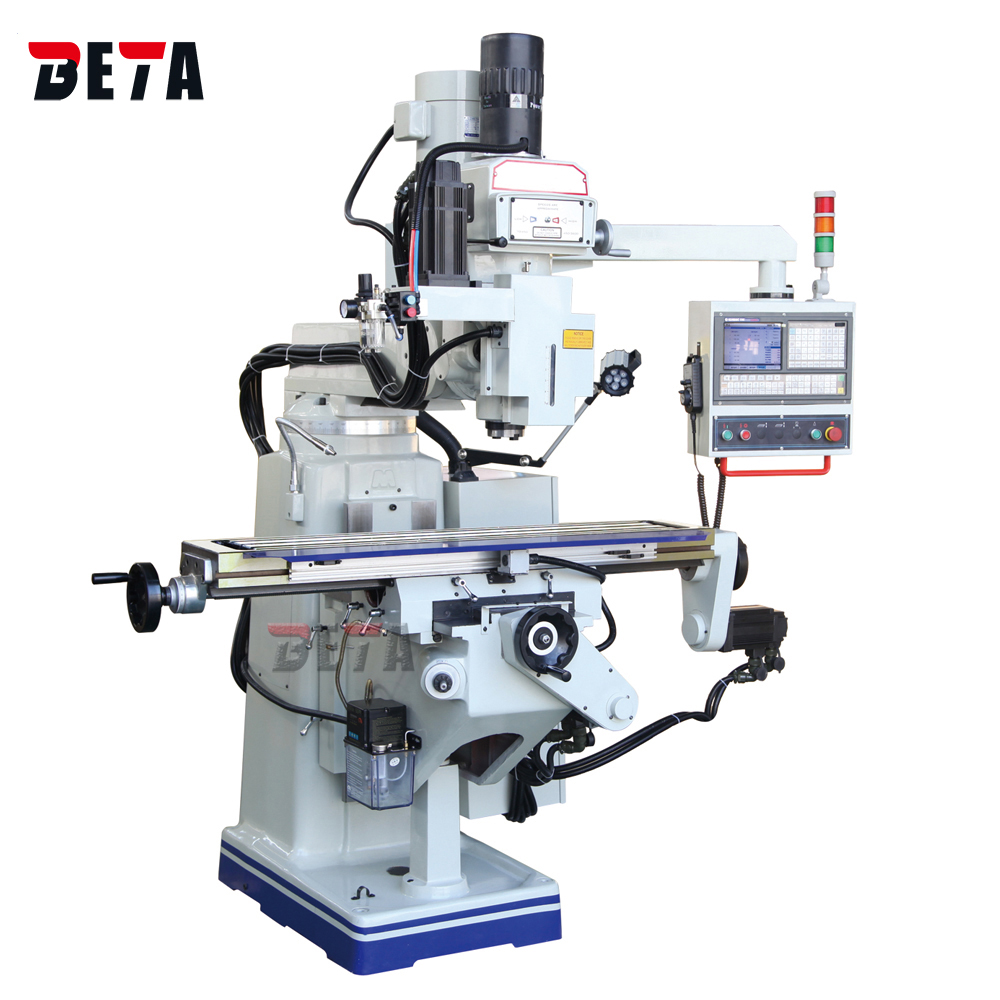

CNC Milling Machine

XK6325

Worktable size 254x1270mm, 254x1370mm
Travel X/Y/Z axis 750/400/103mm
5HP Taiwan milling head with 16 steps speed 66-4540rpm
X/Y/Z with servo motor driven
Milling head swivel 90 degree , tilt 45 degree
GSK, Siemens CNC controller for choice

INQUIRY

Features
Specification
CONFIGURATION

1.Cast-iron with wide, hardened, plastic-coated rectangular guide ways

2.Powerful main motor with electronic control and shifted gears ensure high torque and wide speed range

3.Cutter head swivel to both sides

4.Automatic central lubrication

5.Mini and economical style, with lower price and widely using

6.Milling head from Taiwan

7.Bearing from NACHI

8.Ball lead screw from Chinese famous brand

9.3-Axis servo motor and 3-axis rapid feed

10.Variable speed milling head for your choice as optional accessories.

Model		Unit	XK6325
Table size		mm	254×1270
			254×1370
T slots		n*mm	3×16
Table loading		kg	280
X axis(table longitudinal move)travel		mm	750
			850
Y axis(table cross move)travel		mm	400
Z axis(Quill move)travel		mm	103
X/Y/Z axis servo motor		KW	1
Knee vertical travel		mm	400
Ram travel		mm	470
Distance from spindle to table		mm	0-400
Spindle speed	Atandard:16 steps	rpm	50HZ:66-4540/60HZ:80-5440
	Optional:Variable		60-4200
Spindle taper			Standard:R8/Optional:ISO40
Motor power		HP	5
Head rotating	Swiveling	degree	90°
	Tilting		45°
CNC controller			GSK980MD
Packing size		mm	1900×2000×2230
G.W		kg	1400

Standard accessories :

GSK980MD CNC controller ,

step spindle speed milling head (3HP for XK6325, 5HP for XK6330) ,

R8 spindle taper for XK6325,

ISO40 spindle taper for XK6330,

draw bar,

Tool box and tools,

Hung up control panel,

Coolant system,

Oil collecting plate,

Plastic splashing guard,

Auto lubrication system,

Working lamp,

English manual,

wooden pallet packing.
