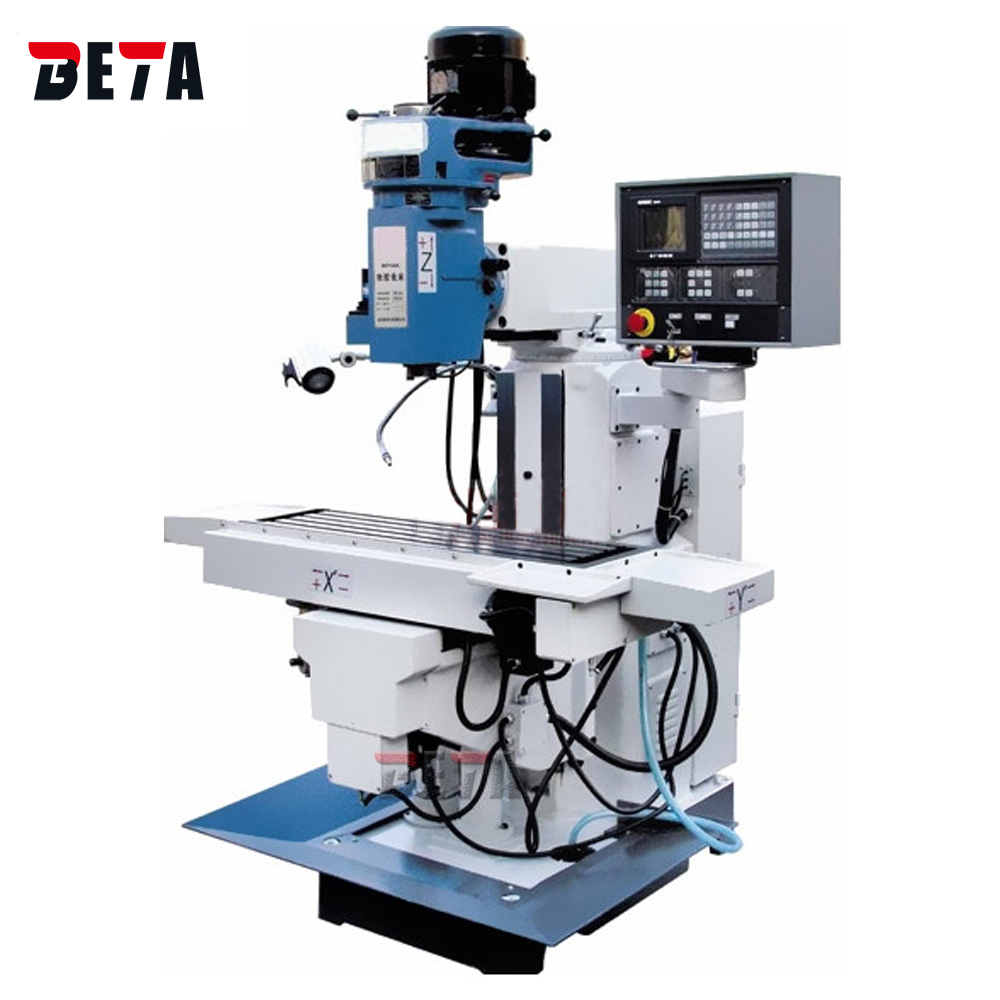

CNC Milling Machine

XK7130A

Table size 1000x280mm
Travel X/Y/Z axis 46/210/360mm
Spindle taper ISO30
3HP milling head with 16 steps speed range 66-4540rpm
GSK, Siemens, FANUC CNC controller for choice

INQUIRY

Features
Specification
CONFIGURATION

1. GSK-980MDA CNC system servo

2. 3HP Milling head, ISO30 spindle

3. Suit for Small parts of the high-precision, highly efficient automatic processing

4. Fully functional

5. Overall structure of compact

6. Famous brand ball screw

Specification	Unit	XK7130A
X-axis travel	mm	460
Y-axis travel	mm	210
Z-axis travel	mm	360
Spindle nose to table	mm	120-480
Spindle center to column guide-way face	mm	200-500
High speed feeding of X,Y axis	mm/min	3000
Feeding speed	mm/min	1-2000
Size of working table	mm	1000×280
Max.loading capacity of rotary table	mm	100
T-slot NO./width/distance of rotary table		3×14×63
Spindle speed range/step	r/min	66-4540/16steps
Main motor rated power	Kw	2.2(3HP)
Spindle hole taper		7:24 ISO30
N.W	KG	1300
Overall dimension	mm	1540×1340×2130

Standard configuration :

Mill Chuck,

Reduction Sleeve,

Wrench,

Marching Vice,

Inner-hexagonal Spanner

Draw bar,

Drill chuck arbors,

Coolant system,

Work lamp,

English operate manual
