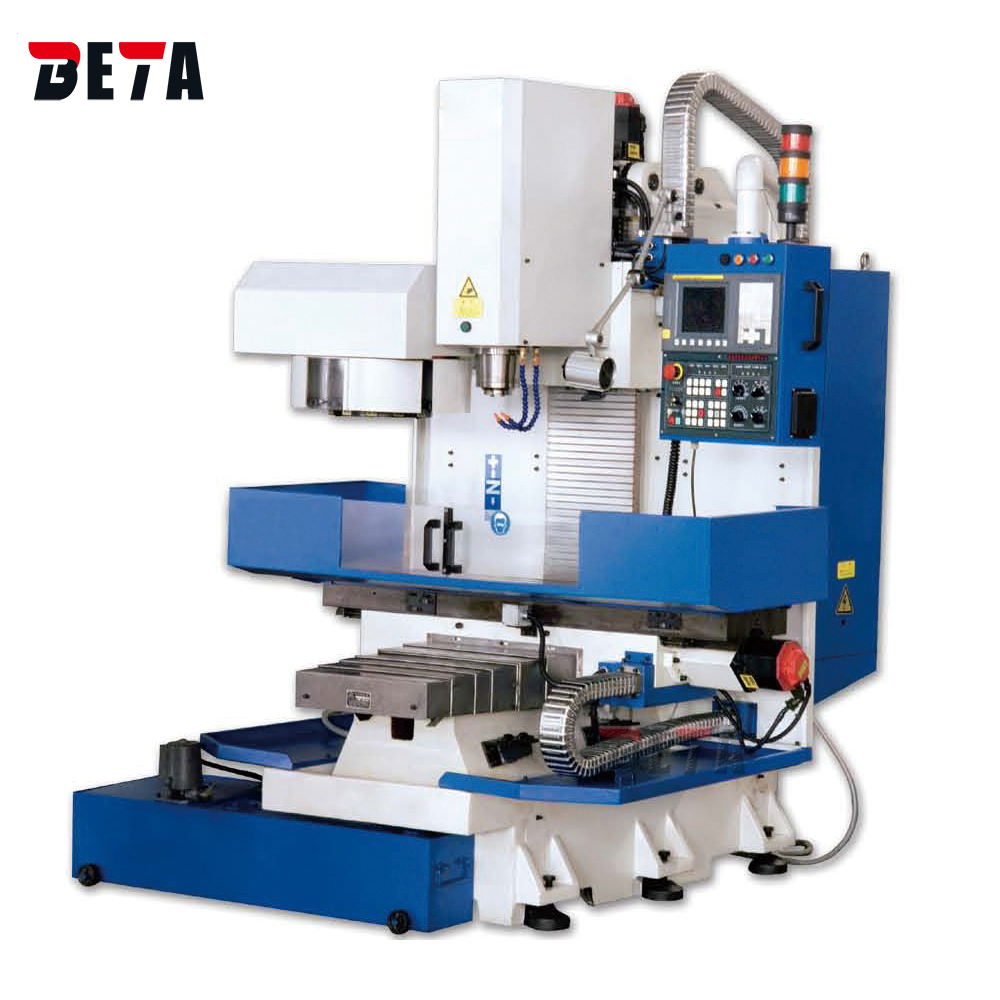

1. Bed type CNC milling machine.
2. BT40 spindle taper with maximum 6000rpm.
| Model | Unit | S-1354B | S-1654 | |
| Table | Table size(L×W/mm) | (L×W/mm) | 1370×330 | 1370×406 |
| Table loading capability | kg | 400 | 800 | |
| T-slots | (W/mm×No | 16×3 | 16×5 | |
| Travel | X-axis | mm | 800 | 1000 |
| Y-axis | mm | 450 | 480 | |
| Z-axis | mm | 480 | 600 | |
| X,Y,Z Max.move speed | mm/min | 8000 | 8000 | |
| X,Y,Z Max.feed speed | mm/min | 3000 | 3000 | |
| Spindle | Spindle speed | rpm/min | RANGE:40-6000 | RANGE:40-6000 |
| spindle nose | BT40 | BT40 | ||
| spindle moter | KW | 5.5 | 7.5 | |
| Spindle quill diameter | mm | Φ120 | Φ150 | |
| distance from spindle to column surface | mm | 160-640 | 80-680 | |
| Ball screws | X-axis | mm | Φ32×5 P4 Double nuts | Φ32×5 P4 Double nuts |
| Y-axis | mm | Φ32×5 P4 Double nuts | Φ40×5 P4 Double nuts | |
| Z-axis | mm | Φ32×5 P4 Double nuts | Φ40×5 P4 Double nuts | |
| Three axis accuracy | Positioning accuracy | mm | 0.025 | 0.03 |
| Repeatability | mm | 0.012 | 0.016 | |
| Packingdimension | Semi-closure guard | mm | 2280×2250×2470 | 2500×2280×2650 |
| Full-closure guard | mm | 3000×2280×2470 | 3300×2280×2650 | |
| Machine weight | kg | 2600 | 3800 | |
| kg | 3400 | 4720 | ||
Standard accessories:
With BT40 spindle
6000rpm Max. spindle speed
Ball screw for X/Y/Z axis
milling head from Taiwan
Cooling system
Work light
Tool and tool box
CNC controller
