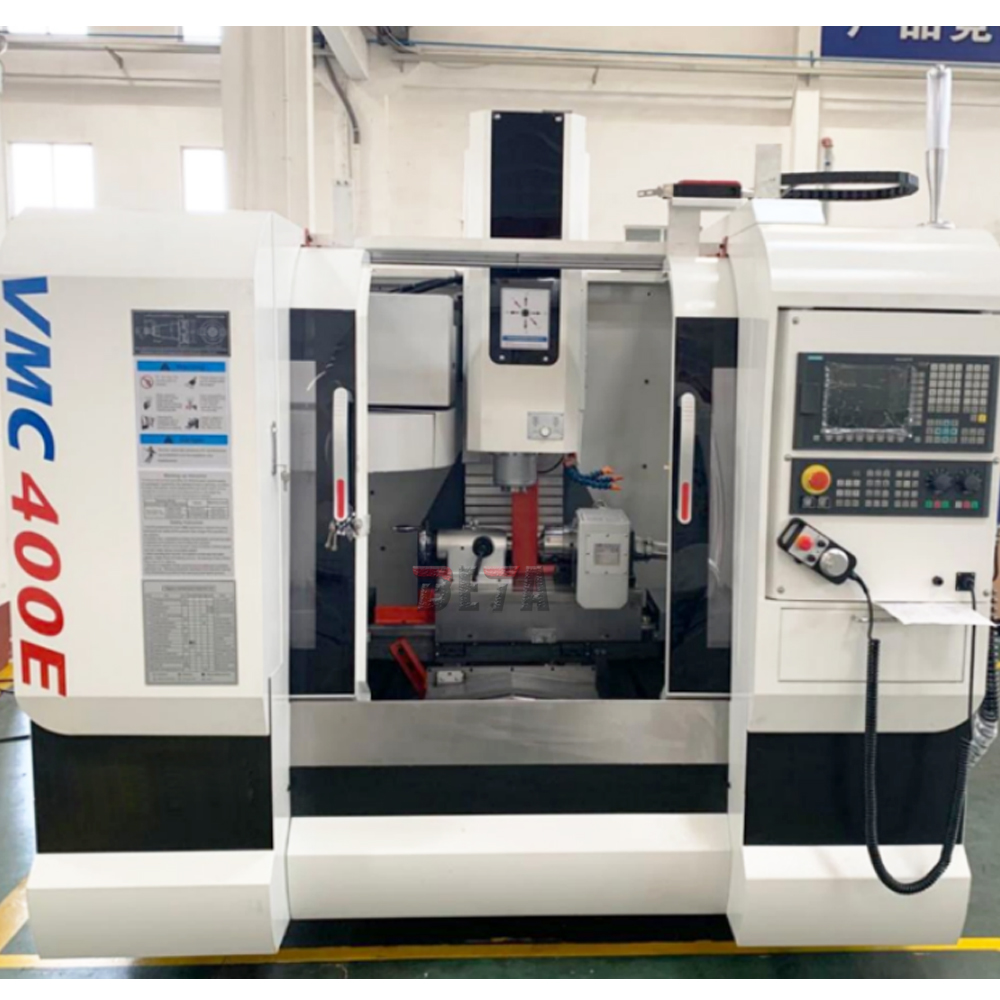

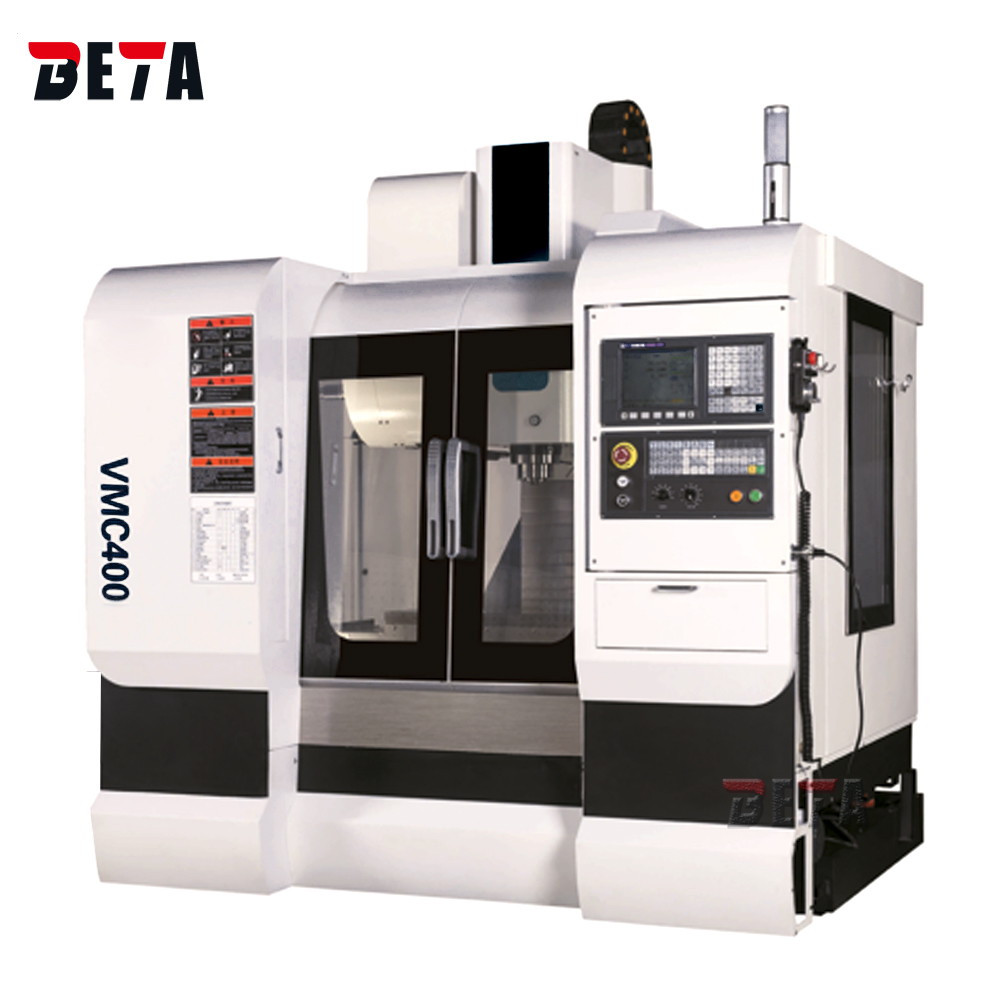

CNC Vertical Milling Machining Center

VMC400E

X/Y/Z axis linear guideway
16 Tools umbrella type automatic tool changer
Worktable size 600x350mm
X/Y/Z axis travel 400/350/400mm

INQUIRY

Features
Specification
CONFIGURATION

VMC400E cnc 3 axis machining center vertical machining center is composed of base, column, middle sliding saddle, table, headstock, operation panel, tool magazine, pneumatic system, lubricant system, cooling, lighting, protection system, CNC system, electrical system.

BT40 spindle taper with maximum 8000rpm spindle speed, higher spindle speed 10000/12000rpm is optional.

Standard with 16 pcs umbrella type automatic tool changer for CNC machining.

Standard with 3 axis CNC control milling machining center, the 4th axis rotary table with tailstock is optional accessories for your choice.

Specifications	unit	VMC400E
worktable :
Table size	mm	600*350
T slot	no	3
Centre distance	mm	120
T-Width	mm	14
Max. load of worktable	kg	100
machining range :-
Longitudinal travel	mm	400
Cross travel	mm	350
Vertical travel	mm	400
spindle nose to table surface	mm	60-460
Spindle taper		BT40
Speed Range	rpm	40-8000
spindle motor power	kw	5.5
feed :
cuttiing feed X/Y/Z	mm / min	2-10000
rapid feed X/Y/Z	m / min	30/30/24
tool magazine
tool magazine capacity	piece	16
tool magazine type		Umbrella type
Max. tool diameter (full)	mm	8
Max. tool length	mm	80/130
Max. tool weight	kg	300
Tool changing time (tip to tip)	s	3/7
accuracy
positioning accuracy	mm	±0.005/300JIS
repeat positioning accuracy	mm	±0.003 JIS
overall dimensions(LxWxH)	mm	302019502380
Machine weight	kg	2400

Standard accessories:

Taiwan spindle BT40-120-10000RPM (highest speed 8000rpm),  X,Y,Z linear guide ways ,
Taiwan umbrella type tool magazine with 16 tools,
Taiwan high precision ball screws,
spindle blowing chip removal system, pindle front seal
Germany FAG bearings,
auto centralized lubrication system,
two water cooling, one air cooling
electrical hand wheel(MPG),
working lamp, alarm light,rigid tapping,
air gun

Optional accessories:

arm type tool magazine with 16pcs

the 4th axis rotary table 120mm with manual tail stock(Taiwan)

Chain type chip removal system with flushing

Screw type chip removal system with flushing

Renishaw tool setting probe TS27R

BT40-120 direct connection spindle 10000rpm(highest speed 8000rpm)

oil cooling (If you choose direct connection spindle, we suggest you equip with oil cooling)

Schneider electric

Heat exchanger
