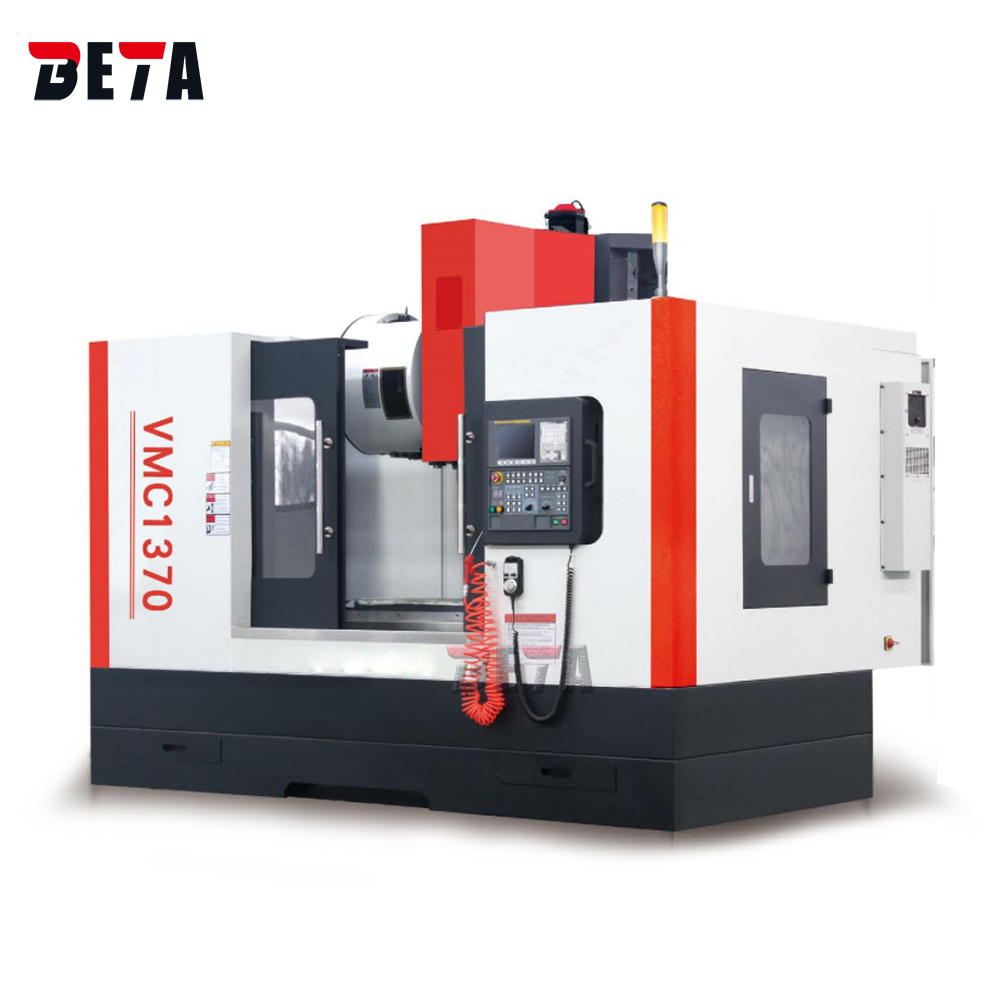

CNC Vertical Milling Machining Center

VMC1370

Worktable size 1400x700mm
Travel X/Y/Z axis 1300/700/700mm
BT50 spindle with 6000rpm speed
15kw spindle motor
3-axis linear guide way

INQUIRY

Features
Specification
CONFIGURATION

1. The feed axis of this machining center is driven by X, Y, Z three-coordinate servo motors.

2. The main shaft unit is driven by AC servo motors, and the tool magazine capacity is 24 tools.

3. It can realize one-time clamping of complex parts such as various disks, plates, shells, cams, molds, and complete drilling, milling, boring, expansion, reaming, tapping and other processes.

4. It is suitable for processing various medium specifications, the workpiece is also suitable for processing various complex cavities and surfaces, especially for processing parts with three-dimensional shapes, which is especially convenient, so it is an ideal machine tool for mold manufacturing.

Model	VMC1370
Worktable size	1400x700mm
Max.loading capacity of worktable	1100 kg
T-slot (No. - width - distance)	5-18-152mm
Worktable travel X/Y/Z	1300/700/700mm
Rapid moving speed X/Y/Z	24/24/18 m/min
Cutting feeding speed X/Y/Z	1-10000mm/min
Spindle taper	BT50
Diameter of spindle	160mm
Max.spindle speed	6000 rpm
Distance between spindle nose to worktable	120-850mm
Distance between spindle centre to column guide	780mm
Spindle motor power	15 kw
X/Y/Z servo motor power	3/3/3kw
Position accuracy X/Y/Z	0.008mm
Re-position accuracy X/Y/Z	0.005mm
Automatic Tool magazine pieces	24 pcs ATC
Voltage	380V±10% 50Hz±10%, 3 phase
Cooling pump power	450W
Cooling pump flow	25L/min
CNC controller	GSK, Siemens , FANUC for choice
Overall size	3600x2800x2960mm
Machine weight	11500 kg

Standard accessories:

Taiwan BT50 spindle 6000rpm speed

Spindle servo motor 15kw

AirTAC Automatic pneumatic tool release and pneumatic component

Disc type 24 tools automatic tool changer

Taiwan HIWIN linear guide way and ball leadscrew

Automatic centre lubrication system

GSK25i CNC controller

RS232 interface

MPG,

Germany FAG leadscrew bearings

3 color alarm light

Full-closed protection cover

Optional accessories:

Spindle oil cooling device

The 4th axis , 5th axis worktable

Other CNC controller Siemens, FANUC
