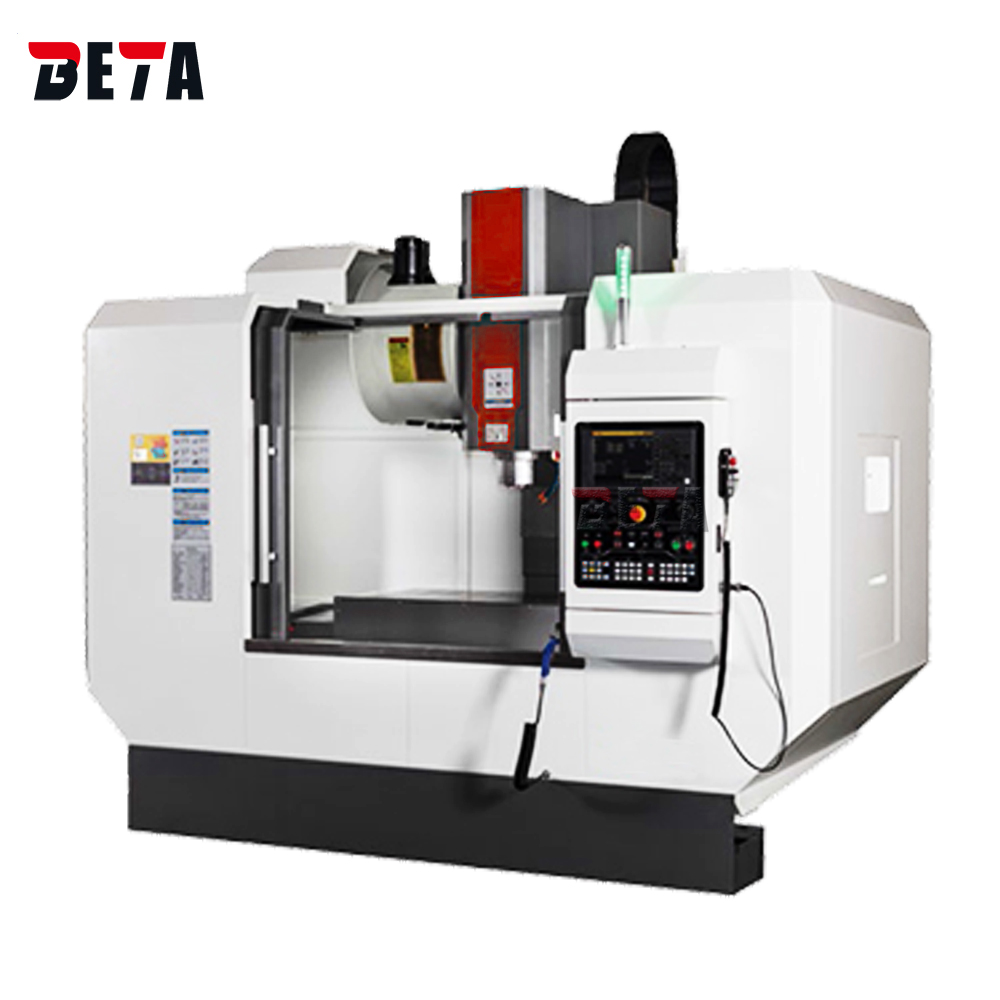

CNC Vertical Milling Machining Center

VMC1160L

X/Y/Z-axis Taiwan linear guideway
ATC 24 tools
Worktable size 1200x600mm
X/Y/Z-axis travel 1100/600/600mm

1.CNC vertical milling machining center with 3 axis linear guideway, high accuracy.

2.Different CNC controller are available: GSK/SIEMENS/FANUC

3.BT40 spindle with high speed 8000rpm standard, 10000/12000rpm speed spindle are optional.

4.Automatic tool changer 24 pcs ATC, convenient for working.

5.Fully-closed shield and safety door lock can protect the operator.

6.High rigidity cast iron frame with big loading capacity 600kgs.

Items	Units	VMC1160
Table size	mm	1200x600
T-slot	no	5
Centre distance	mm	100
T-width	mm	18
Max.load of worktable	kg	600
Longitudinal travel	mm	1100
Cross travel	mm	600
Vertical travel	mm	600
Spindle nose to table surface	mm	120-720
Spindle taper	-	BT40
Spindle speed range	rpm	40-8000
Spindle output torque(Max.)	N.M	52.5/95.5
Spindle motor power	kw	11/15
Cutting feed X/Y/Z-axis	mm/min	1-10000
Rapid feed X/Y/Z-axis	m/min	30/30/24
X/Y/Z lead screw size	mm	40x12
Tool magazine capacity	piece	24
Tool magazine type	-	Arm type
Max. Tool weight	kg	8
Max. Tool diameter(full/empty)	mm	78/120
Max. Tool length	mm	300
Tool changing time(tool to tool/cut to cut)	s	1.55/5
Positioning accuracy	mm	±0.005/300 JIS
Repeat position accuracy	mm	±0.003 JIS
Overall dimensions (LxWxH)	mm	3100x2460x2860
Machine weight	kg	6000

Standard accessories:

GSK218 CNC controller,

Taiwan spindle BT40-10000RPM (highest speed 8000rpm),

Three axis Hiwin/Rexroth 45mm roller linear guide way,

Taiwan Hiwin ball screws,

24pcs arm type tool magazine,

spindle blowing chip removal system,

spindle front seal,

auto centralized lubrication system,

water cooling, air cooling,

electrical hand wheel,

working lamp,

alarm light,

safety door lock,

Operational manual

Optional accessories:

chain type chip removal system with flushing

Screw type chip removal system with flushing

Renishaw tool setting probe TS27R

Renishaw work piece measuring OMP-60

BT40-150 direct connection spindle 10000rpm(highest speed 8000rpm) with oil cooling

BT40-150 12000RPM direct connection spindle with oil cooling: (highest speed 10000rpm)
