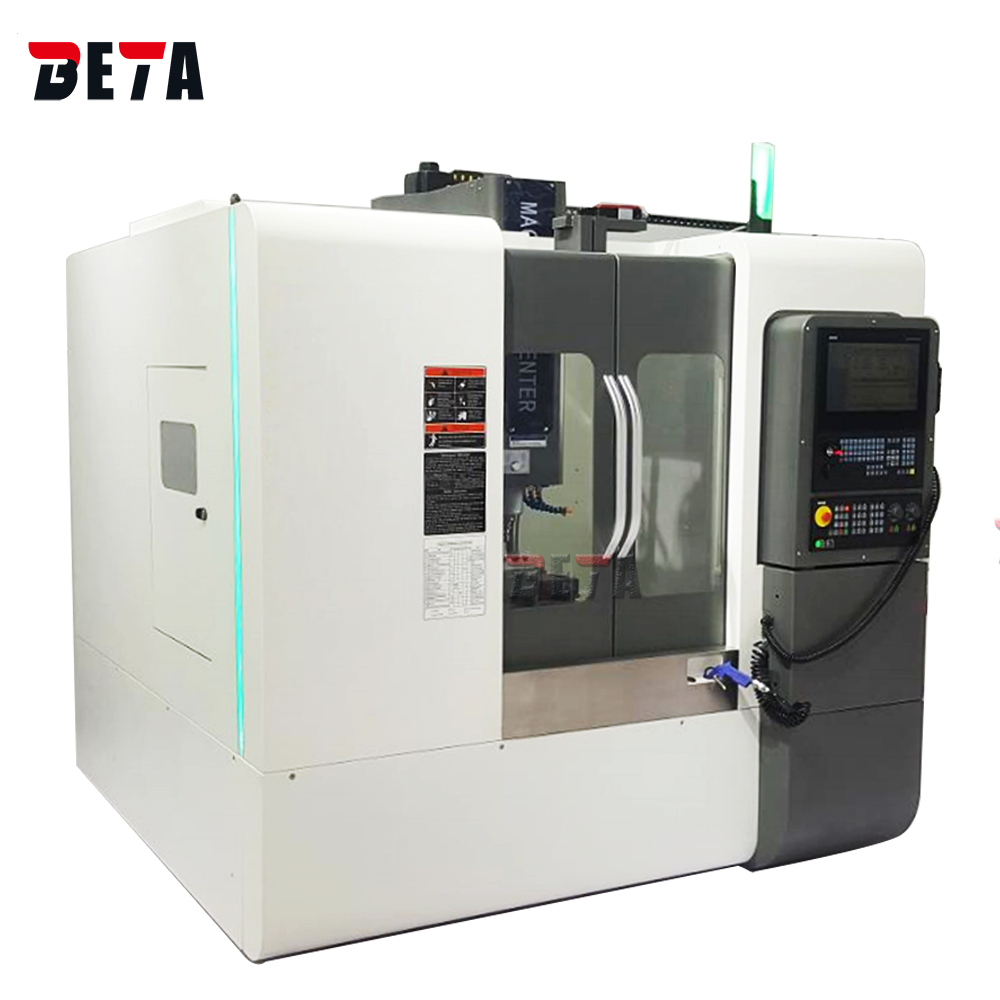

CNC Vertical Milling Machining Center

VMC740

X/Y/Z-axis Taiwan linear guideway
ATC 16 tools
Worktable size 920x400mm
X/Y/Z-axis travel 700/400/500mm

Features:

1. 3-axis CNC vertical milling machining center.

2. X/Y/Z-axis Taiwan or Germany linear guideways and ball screws.

3. BT40 spindle taper with maximum 8000rpm spindle speed.

4. 4-axis and 5-axis CNC rotary table is optional.

5. GSK/Siemens/FANUC CNC controller for your choice.

Item	Unit	VMC740
Table size	mm	920x400
T slot	No	3
Centre distance	mm	120
T-Width	mm	14
Max. load of worktable	kg	300
Longitudinal travel	mm	700
Cross travel	mm	400
Vertical travel	mm	500
spindle nose to table surface	mm	120-620
Spindle taper		BT40
Speed Range	rpm	40-8000
Spindle output torque (Max.)	N.M	26.3/48
spindle motor power	kw	5.5
cutting feed X/Y/Z	mm / min	1-10000
rapid feed X/Y/Z	m / min	30/30/24
Feeding motor X/Y/Z	kw	1.2/1.2/1.4
tool magazine capacity	piece	16
tool magazine type		Taiwan arm type tool magazinee
Max. tool weight	kg	8
Max. Tool dia. (full/empty)		85/150
Max. Tool length	mm	300
Tool changing time (tool to tool/cut to cut)	s	1.75
Working accuracy
positioning accuracy	mm	±0.005/300 JIS
repeat positioning accuracy	mm	±0.003 JIS
overall dimensions(LxWxH)	mm	218020522600
Machine weight	kg	3200

Standard accessories:

Taiwan spindle BT40-120-10000RPM (highest speed 8000rpm),

Taiwan or Germany linear guide ways and ball screws,

Taiwan arm type tool magazine with 16pcs,

spindle blowing chip removal system,

spindle air curtain protection

Japan Nachi or Germany FAG bearings,

auto centralized lubrication system, rigid tapping, two water cooling, one air cooling

electrical hand wheel, working lamp, RS232 interface, alarm light,

DNC online processing, CE Electrical

Optional accessories:

the 4th axis rotary table 200mm with manual tail stock (Taiwan brand)

chain type chip removal system with flushing or Screw type chip removal system with flushing

Renishaw tool setting probe TS27R

BT40-120 direct connection spindle 10000rpm(highest speed 8000rpm) with oil cooler

schneider electric

heat exchanger

Schmersal or Siemens electromagnetic locks
