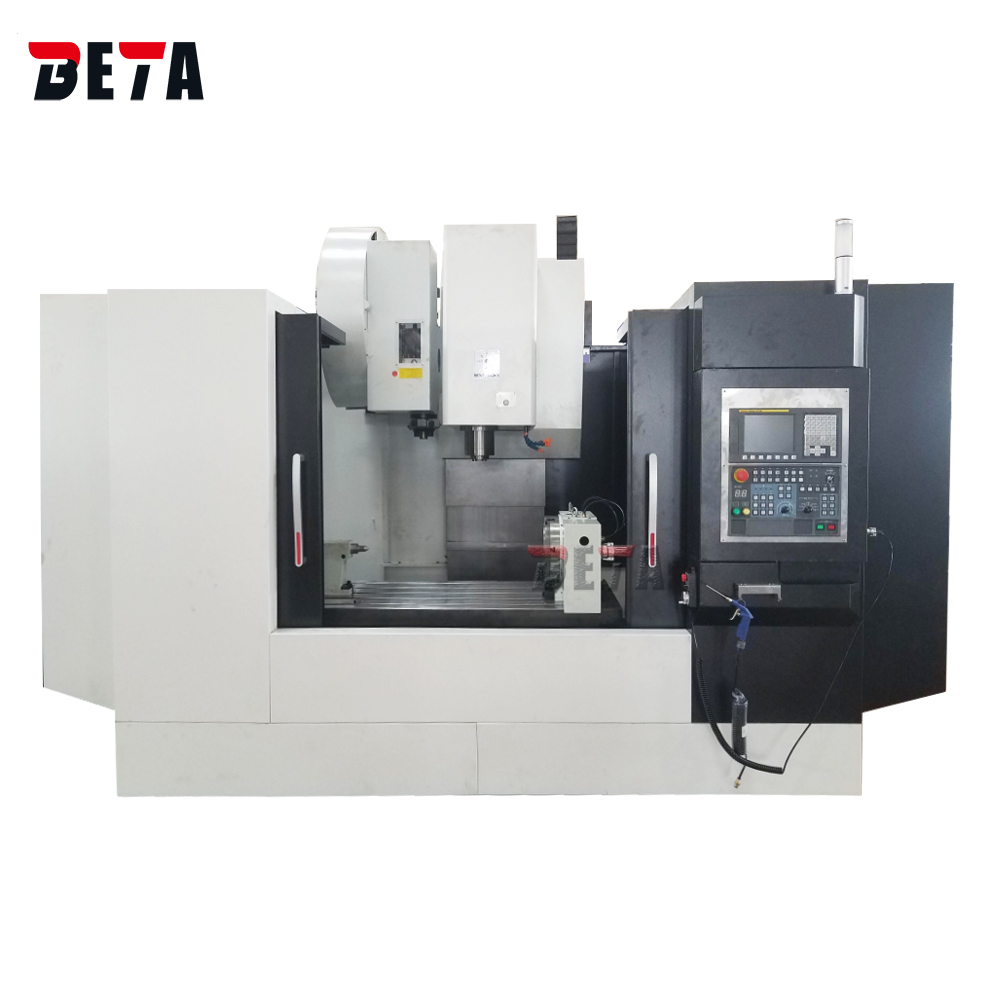

CNC Vertical Milling Machining Center

VMC1300

X/Y-axis Taiwan or Germany linear guideway
Z-axis harden box guideway
ATC 24 tools
Worktable size 1500x700mm
X/Y/Z-axis travel 1300/700/700mm

Features:

1. X/Y-axis Taiwan or Germany linear guideways and ball screws with high precision.

2. Z-axis harden box guideway with good rigidity.

3. BT40 spindle taper with maximum 8000rpm spindle speed.

4. 4-axis CNC rotary table is optional.

5. GSK/Siemens/FANUC CNC controller for your choice.

Items	unit	VMC1300
Table size	mm	1500x700
T slot	no	5
Centre distance	mm	135
T-Width	mm	22
Max. load of worktable	kg	1000
Longitudinal travel	mm	1300
Cross travel	mm	700
Vertical travel	mm	700
spindle nose to table surface	mm	160-860
spidle axis to column surface	mm	760
Spindle taper		BT40
Speed Range	rpm	40-8000
Max.spindle torque	N.M	52.5/95.5
spindle motor power	kw	11
Feed motor X/Y/Z	kw	3/3/3
cuttiing feed X/Y/Z	mm / min	1-10000
rapid feed X/Y/Z	m / min	24/24/18
tool magazine capacity	piece	24
tool magazine type		Arm type tool magazine
Max. tool diameter (full/empty)	mm	80/150
Max. tool length	mm	300
Max. tool weight	kg	7
Tool changing time (tip to tip)	s	1.55/3.8
positioning accuracy	mm	±0.005/300JIS
repeat positioning accuracy	mm	0.003 JIS
overall dimensions(LxWxH)	mm	3700x2500x3000
N/W	KG	9500

Standard accessories:

Taiwan spindle BT40-10000RPM (highest speed 8000rpm),

Taiwan or Germany ball screws,

X,Y axis Taiwan or Germany linear guide ways,

Z axis Box guide ways,

Taiwan arm type tool magazine with 24 tools,

spindle blowing chip removal system,

spindle air curtain protection,

Taiwan or Germany bearings,

auto centralized lubrication,

rigid tapping , two water cooling, one air cooling,

electrical hand wheel, working lamp,

RS232 interface, alarm light, DNC online processing,

Schneider electric , heat exchanger

Optional accessories:

the 4th axis rotary table 250mm with manual tail stock (Taiwan brand)

chain type chip removal system with flushing or Screw type chip removal system with flushing

Renishaw tool setting probe TS27R

coolant through spindle

BT40 direct connection spindle 10000rpm(highest speed 8000rpm) with oil cooler
