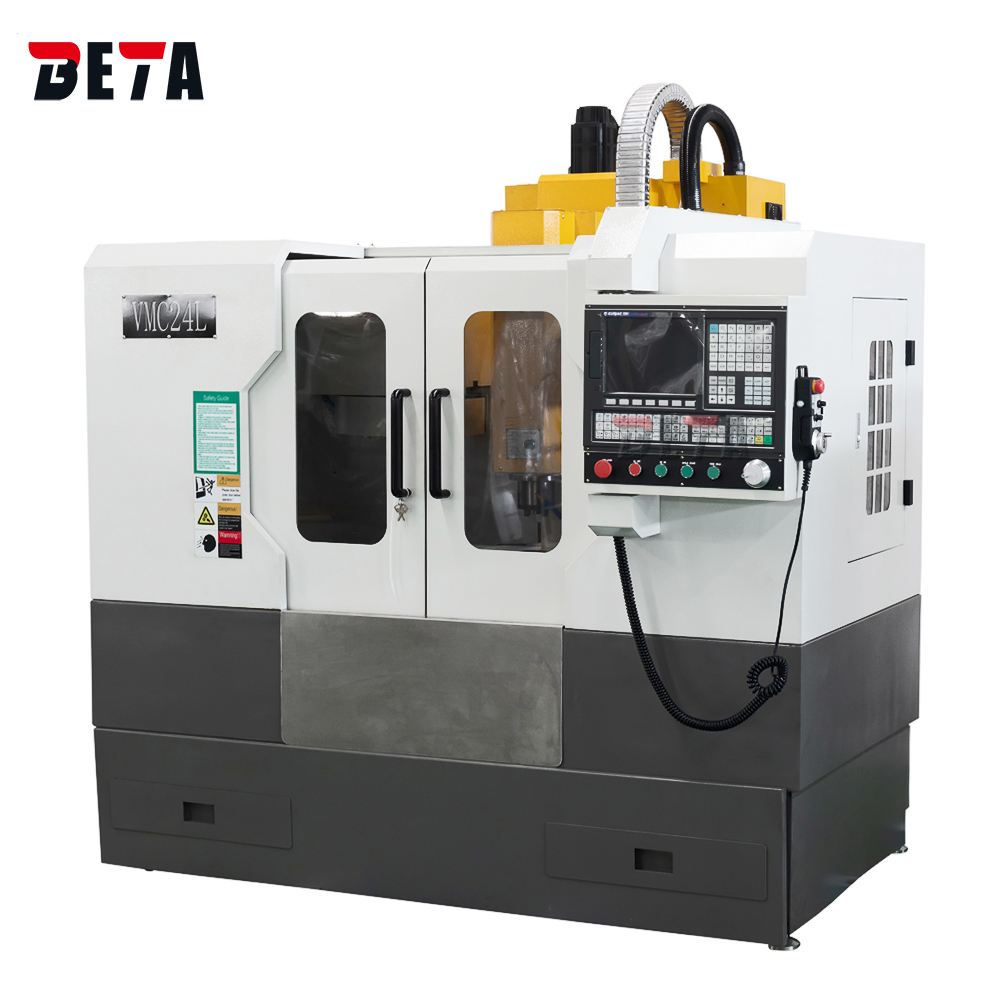

CNC Vertical Milling Machining Center

VMC24L

Table size 810x240mm
X/Y/Z axis travel 380/240/370mm
X/Y/Z axis linear guideway
BT30 spindle

Features:

1. Speically designed for machining small-size parts.

2. Smaller CNC machine with linear guide-way, but concentrated all of functions as normall vertical machine center.

3. Tools can be changed automatically with high speed and high efficiency.

4. CNC control system: GSK, SIMENS 808D, SIMENS 808D Advance, FANUC OI MATE-MD.

5. Can be with 4th axis under SIMENS 808D Advance system

Model	XK7124L/VMC24L	VMC25L
Size of worktable(L×W)(mm)	810×240	1000×250
T slot(width ×qty×spaces)(mm)	16×3×60	16×3×60
Max loading weight on worktable(kg)	100	120
X/Y/Z-Axis travel(mm)	380/240/370 (470 Optional)	535×320×375
Distance between spindle nose and table(mm)	60-430	50-425
Distance between spindle center and column(mm)	309	345
Spindle speed(r/min)	100-6000	100-4000(6000/8000)
Spindle taper	BT30	BT30
Tool clamping way	Pneumatically	Pneumatically
ATC capacity(optional)	10	10
Feeding speed(mm/min)	0-2000	0-2000
Rapid feeding speed:X,Y,Z axis(m/min)	15	15
Positioning accuracy(mm)	0.025	±0.008
Repeatability accuracy(mm)	0.016	±0.005
Min.set unit(mm)	0.001	0.001
Main motor power (kw)	2.2/3.7	1.5/2.2
Feeding motor power:X/Y/Z Axis(kw)	1.5/1.5/1.5	2001/1/1
Max.size of tool(mm)	Φ60×175	Φ60×175
Max.loading weight of Tool(kg)	3.5	3.5
N.W(include machine stand)(kg)	1000/1280	1700
Overall size(L×W×H)(mm)	1770×1650×2100	1516×1764×1708
Packing size(L×W×H)(mm)	1900×1620×2480(2580)	2250×1910×2280
Loading amount(20")	6sets/40"GP	6sets/40"GP

Standard accessories:

GSK CNC controller

BT30 spindle 6000rpm speed

pneumatically clamping type

10 pcs ATC capacity

X/Y/Z axis linear guideway

coolant system

fully enclosed protect cover
