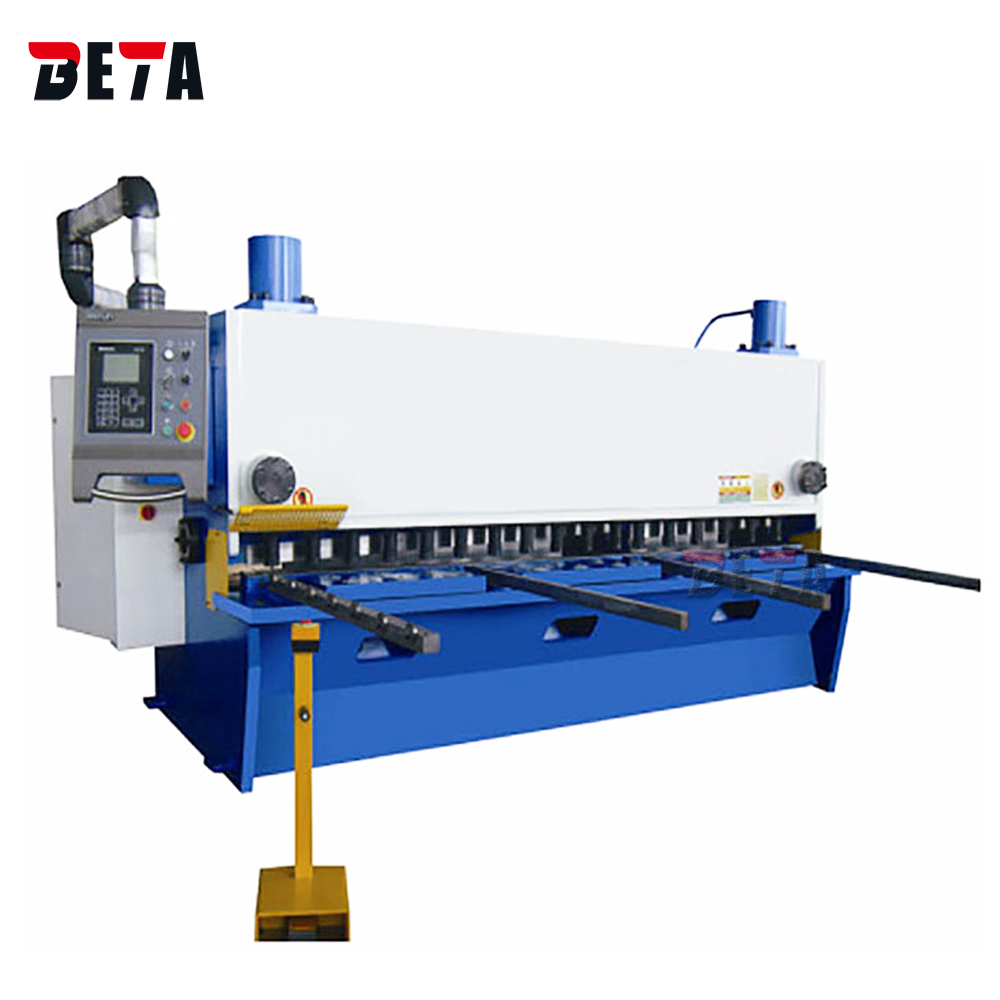

QC11Y-8x3200 Guillotine shearing

CNC hydraulic guillotine shearing machine
Max. shearing thickness 8mm
Max. shearing width 3200mm
CNC control system for choice: ESTUN E21S , E200PS, DAC310, DAC360

INQUIRY

Features
Specification
CONFIGURATION

1. Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material. The one-piece welded frame is machined at one time on a moving column machining centre and this maintains maximum cutting accuracy.

2. Adopt integrated hydraulic control system, more reliable and easy for maintenance. All pipes, flange and joint with vibrations proof and leakage proof design and setting . All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance

3. Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability.

4. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

5. Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

6. The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.

Cutting lenght can be adjusted from the control panel so that the blade does not need to complete the entire cycle.

7. CNC control system: ESTUN E21S , E200PS, DAC310, DAC360

Model	Shearing thickness (mm)	Shearing width (mm)	Strokes	Back gauge range (mm)	Shearing angle (°)	Main motor (kw)
QC11Y-6x2500	6	2500	8-16	20-600	30'-1°30‘	7.5
QC11Y-6x3200	6	3200	8-16	20-600	30'-1°30‘	7.5
QC11Y-6x4000	6	4000	8-16	20-600	30'-1°30‘	7.5
QC11Y-6x5000	6	5000	8-16	20-800	30'-1°30‘	11
QC11Y-6x6000	6	6000	8-16	20-800	30'-1°30‘	11
QC11Y-8x2500	8	2500	8-16	20-600	30'-1°45‘	11
QC11Y-8x3200	8	3200	8-16	20-600	30'-1°45‘	11
QC11Y-8x4000	8	4000	8-16	20-600	30'-1°45‘	11
QC11Y-8x5000	8	5000	8-16	20-800	30'-2°	15
QC11Y-8x6000	8	6000	8-16	20-800	30'-2°	15
QC11Y-12x2500	12	2500	8-12	20-800	30'-2°	15
QC11Y-12x3200	12	3200	8-12	20-800	30'-2°	15
QC11Y-12x4000	12	4000	8-12	20-800	30'-2°	15
QC11Y-12x5000	12	5000	8-12	20-1000	30'-2°	22
QC11Y-12x6000	12	6000	8-12	20-1000	30'-2°	30
QC11Y-16x2500	16	2500	8-12	20-800	30'-2°30‘	22
QC11Y-16x3200	16	3200	7-10	20-800	30'-2°30‘	22
QC11Y-16x4000	16	4000	7-10	20-800	30'-2°30‘	22
QC11Y-16x5000	16	5000	7-10	20-1000	30'-2°30‘	30
QC11Y-16x6000	16	6000	7-10	20-1000	30'-2°30‘	37
QC11Y-20x2500	20	2500	7-10	20-800	1°30'-3°	30
QC11Y-20x3200	20	3200	6-10	20-800	1°30'-3°	30
QC11Y-20x4000	20	4000	6-10	20-800	1°30'-3°	30
QC11Y-20x5000	20	5000	6-10	20-1000	1°30'-3°	37
QC11Y-20x6000	20	6000	6-9	20-1000	1°30'-3°	37
QC11Y-25x2500	25	2500	6-9	20-800	1°30'-3°30’	37
QC11Y-25x3200	25	3200	6-9	20-800	1°30'-3°30’	37
QC11Y-25x4000	25	4000	6-8	20-1000	1°30'-3°30’	37
QC11Y-32x2500	32	2500	6-8	20-1000	1°30'-4°	55
QC11Y-32x3200	32	3200	6-8	20-1000	1°30'-4°	55
QC11Y-40x2500	40	2500	4-6	20-1000	1°30'-4°	55
QC11Y-40x3200	40	3200	4-6	20-1000	1°30'-4°	55

Standard configuration:

Taiwan oil cylinder seals

Main electric components Schneider

Siemens motor

Rexroth valve

Hydraulic Pump from Sunny USA

ESTUN E21S NC system

Emergency stops on machine and foot switch for safety

body guard

Pressure foot

Back gauge

Optional configuration:

light curtain protection

E200PS, DAC310, DAC360 CNC controller
