Shearing Machine
QC12Y-8x2500 Shearing

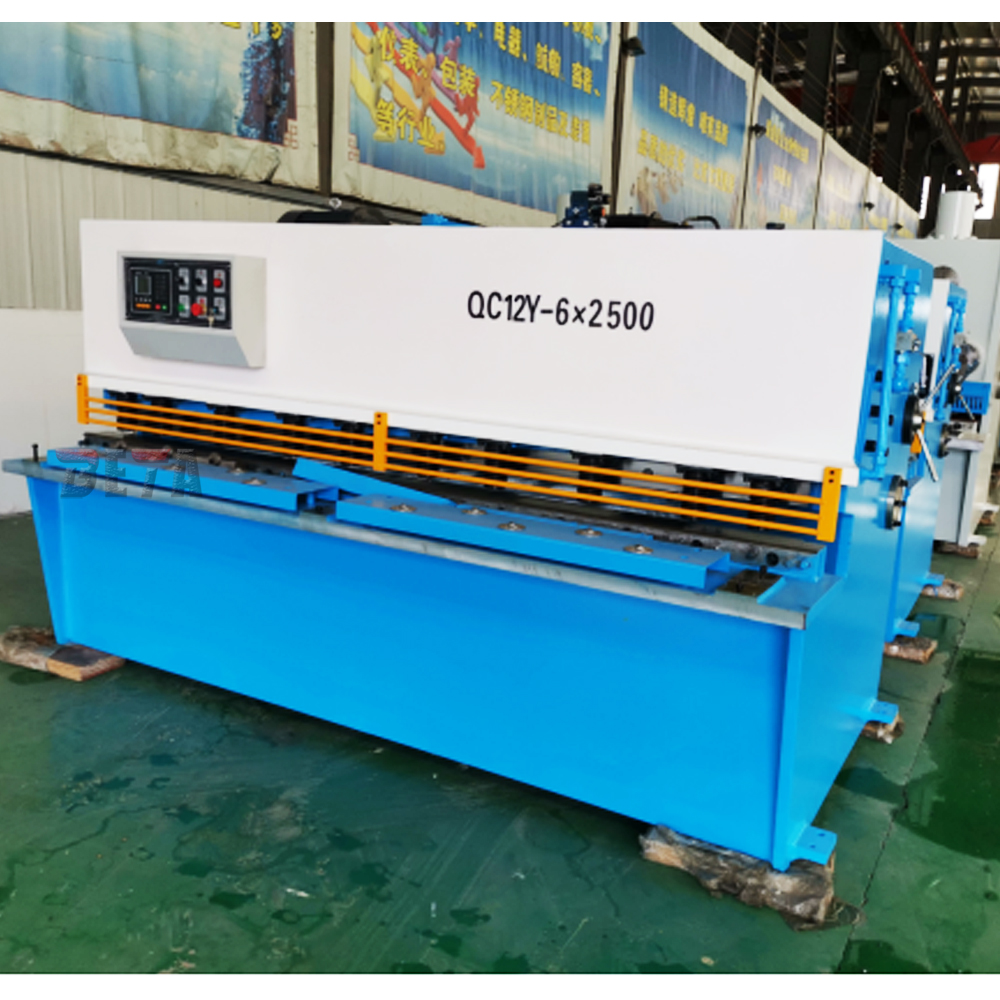

Hydraulic swing type shearing machine
Max. shearing thickness 8mm
Max. shearing width 2500mm
CNC control system for choice: ESTUN E21S , E200PS, DAC310, DAC360
  • Features
  • Specification
  • CONFIGURATION

1. Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material. The one-piece welded frame is machined at one time on a moving column machining centre and this maintains maximum cutting accuracy.

2. Adopt integrated hydraulic control system, more reliable and easy for maintenance. All pipes, flange and joint with vibrations proof and leakage proof design and setting . All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance

3. Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability.

4. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

5. Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

6. The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.

Cutting lenght can be adjusted from the control panel so that the blade does not need to complete the entire cycle.

7. CNC control system: ESTUN E21S , E200PS, DAC310, DAC360


Model

Shearing thickness
(mm)

Shearing width
(mm)

Strokes

Back gauge range
(mm)

Shearing angle
(°)

Main motor
(kw)

QC12Y-4x2500

4

2500

18

20-600

1°30‘

4

QC12Y-4x3200

4

3200

18

20-600

1°30‘

5.5

QC12Y-4x4000

4

4000

12

20-600

1°30‘

5.5

QC12Y-4x5000

4

5000

10

20-600

1°30‘

5.5

QC12Y-4x6000

4

6000

7

20-800

1°30‘

7.5

QC12Y-6x2500

6

2500

18

20-600

1°30‘

7.5

QC12Y-6x3200

6

3200

14

20-600

1°30‘

7.5

QC12Y-6x4000

6

4000

12

20-600

1°30‘

7.5

QC12Y-6x5000

6

5000

10

20-800

1°30‘

7.5

QC12Y-6x6000

6

6000

7

20-800

1°30‘

7.5

QC12Y-8x2500

8

2500

14

20-600

1°30‘

7.5

QC12Y-8x3200

8

3200

10

20-600

1°30‘

7.5

QC12Y-8x4000

8

4000

8

20-600

1°30‘

11

QC12Y-8x5000

8

5000

7

20-800

1°30‘

15

QC12Y-8x6000

8

6000

6

20-800

1°30‘

15

QC12Y-8x8000

8

8000

5

20-800

1°30‘

15

QC12Y-10x2500

10

2500

10

20-600

1°30‘

11

QC12Y-10x3200

10

3200

10

20-600

1°30‘

11

QC12Y-10x4000

10

4000

8

20-600

1°30‘

15

QC12Y-12x2500

12

2500

10

20-600

15

QC12Y-12x3200

12

3200

9

20-600

15

QC12Y-12x4000

12

4000

8

20-800

18.5

QC12Y-12x5000

12

5000

7

20-800

22

QC12Y-12x6000

12

6000

6

20-800

22

QC12Y-16x2500

16

2500

8

20-600

18.5

QC12Y-16x3200

16

3200

7

20-600

18.5

QC12Y-16x4000

16

4000

5

20-800

18.5

QC12Y-20x2500

20

2500

6

20-800

2°30’

30

QC12Y-20x3200

20

3200

6

20-1000

2°30’

30

QC12Y-20x4000

20

4000

6

20-1000

2°30’

30

QC12Y-25x2500

25

2500

6

20-1000

30

QC12Y-25x3200

25

3200

6

20-1000

37


Standard configuration:

Taiwan oil cylinder seals

Main electric components Schneider

Siemens motor

Rexroth valve

Hydraulic Pump from Sunny USA

ESTUN E21S NC system

Emergency stops on machine and foot switch for safety

body guard

Pressure foot

Back gauge


Optional configuration:

light curtain protection

E200PS, DAC310, DAC360 CNC controller
