Shearing Machine

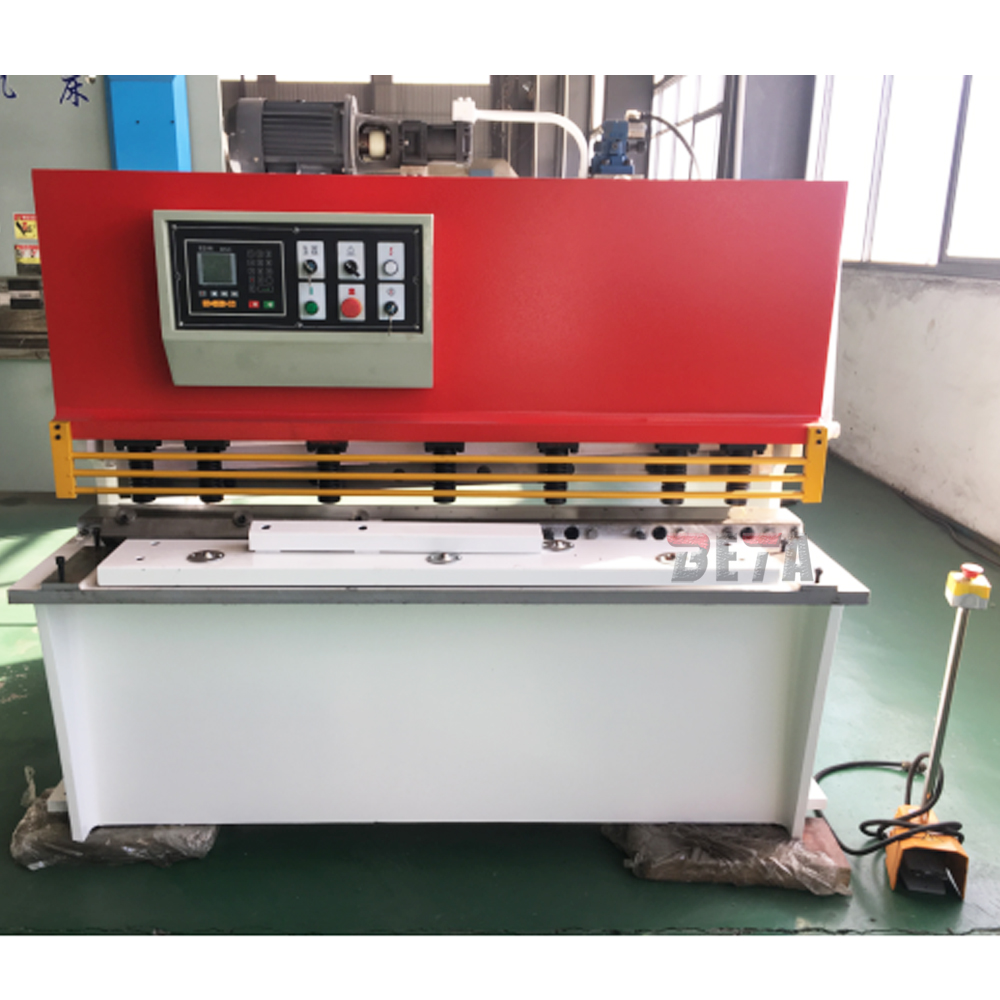

QC12Y-4x1500 Shearing
Hydraulic swing type shearing machine
Max. shearing thickness 4 mm
Max. shearing width 1500 mm
CNC control system for choice: ESTUN E21S , E200PS, DAC310, DAC360
  • Features
  • Specification
  • CONFIGURATION

1. Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material. The one-piece welded frame is machined at one time on a moving column machining centre and this maintains maximum cutting accuracy.

2. Adopt integrated hydraulic control system, more reliable and easy for maintenance. All pipes, flange and joint with vibrations proof and leakage proof design and setting . All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance

3. Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability.

4. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

5. Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

6. The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.

Cutting lenght can be adjusted from the control panel so that the blade does not need to complete the entire cycle.

7. CNC control system: ESTUN E21S , E200PS, DAC310, DAC360


Model
VALUE
UNIT
Shearing thickness
4
mm
Shearing width
1500
mm
Plate tensile
σb≤450
N/mm2
strokes
7
times/min
Angle of shearing
1.5°

Throat depth
150
mm
Blade length
1600
mm
Distance from table to ground
800
mm
Range of back gauge
20~600
mm
Maim motor
Model
Y132M-4B5


Power
4
KW

Rotate speed
1440
rpm
axial plunger pump
Model
KIP4-10


Flow rate
10
L/min

Pressure
31.5
Mpa
Overall dimension
Length
2200
mm

Width
1400
mm

Height
1600
mm
Weight
3
Ton


Standard configuration:

Taiwan oil cylinder seals

Main electric components Schneider

Siemens motor

Rexroth valve

Hydraulic Pump from Sunny USA

ESTUN E21S NC system

Emergency stops on machine and foot switch for safety

body guard

Pressure foot

Back gauge


Optional configuration:

light curtain protection

E200PS, DAC310, DAC360 CNC controller
