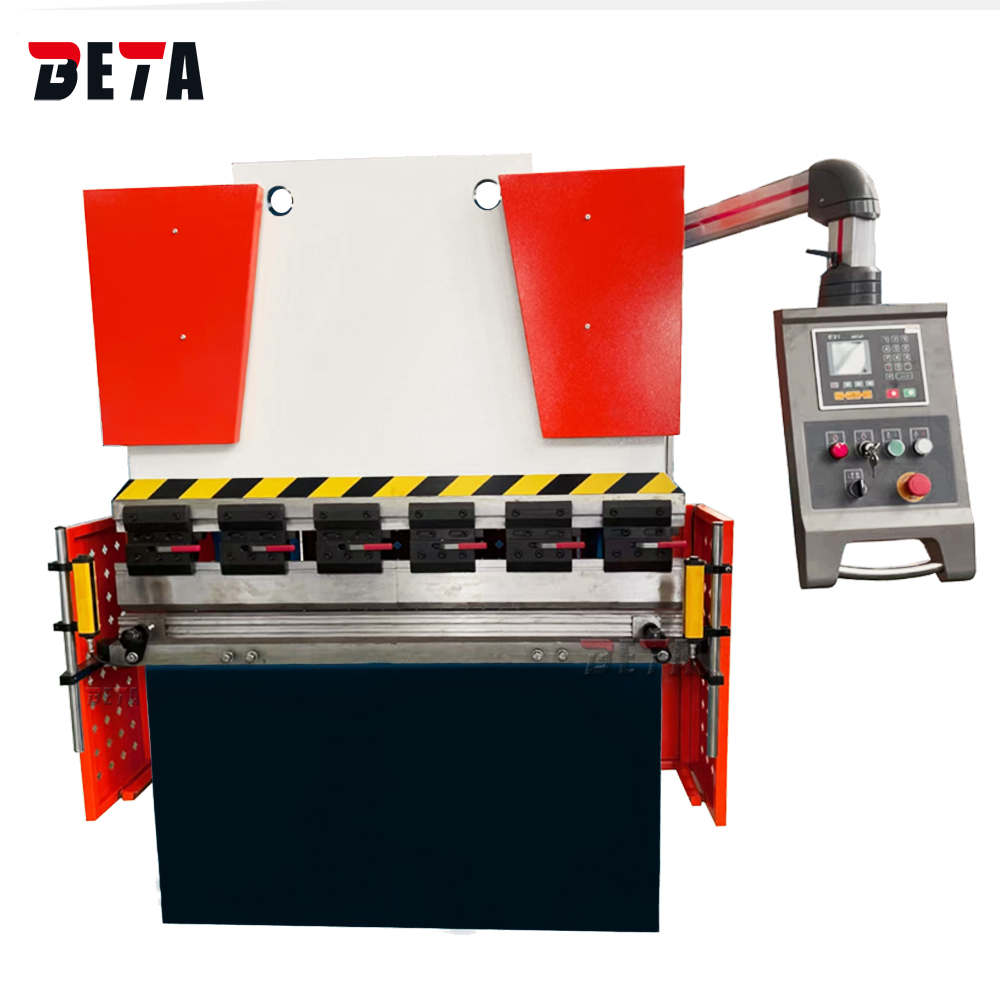

Press Brake Machine

WC67Y-30T/1320

Small size processing capacity 30T and 1320mm width
Hydraulic press brake machine
CNC control system for choice: ESTUN E200P , DELEM DA41T, DA52S, DA66T

INQUIRY

Features
Specification
CONFIGURATION

1. Totally European streamlined design,Monoblock welded steel frame rigid & Heat Treated.

2. Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability..

3. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

4. Front Side Covers with safety switches, Back light safety guards (Category-4) ,Foot pedal conforming to CE regulation.

5. A complete electrolyte servo synchro NC controlled press brake.Close loop electro-hydraulic servo-control system,the most advanced.

6. Hydraulic system is from Bosch,Germany,a full loop electric-hydraulic proportional servo control By Bosch – Rexroth from Germany.

7. The ESTUN E21s control provides a complete solution for conventional shearing machine applicationss.

Name		WC67Y-30T/1320	Unit
Nominal pressure		300	KN
Length of workbench		1320	mm
Distance between housings		960	mm
Throat depth		180	mm
Ram stroke		80	mm
Open high		290	mm
Back gauge		500	mm
Ram speed	Work speed	60	mm/s
	Pressing	10	mm/s
	Return	80	mm/s
Motor power		3	KW
Overall dimension		1600x850x1600	mm

Name	Factory
Oil cylinder seals	Taiwan
cylinder	China Main Land
reducer	China Main Land
Main electric components	Schneider
High pressure pump	China Main Land
motor	China Main Land
valve	China Main Land
Relay	Omron
Soft starter	Mingrong
On tank with temperature gauge and level gauge	China Main Land
NC system	ESTUN E21
