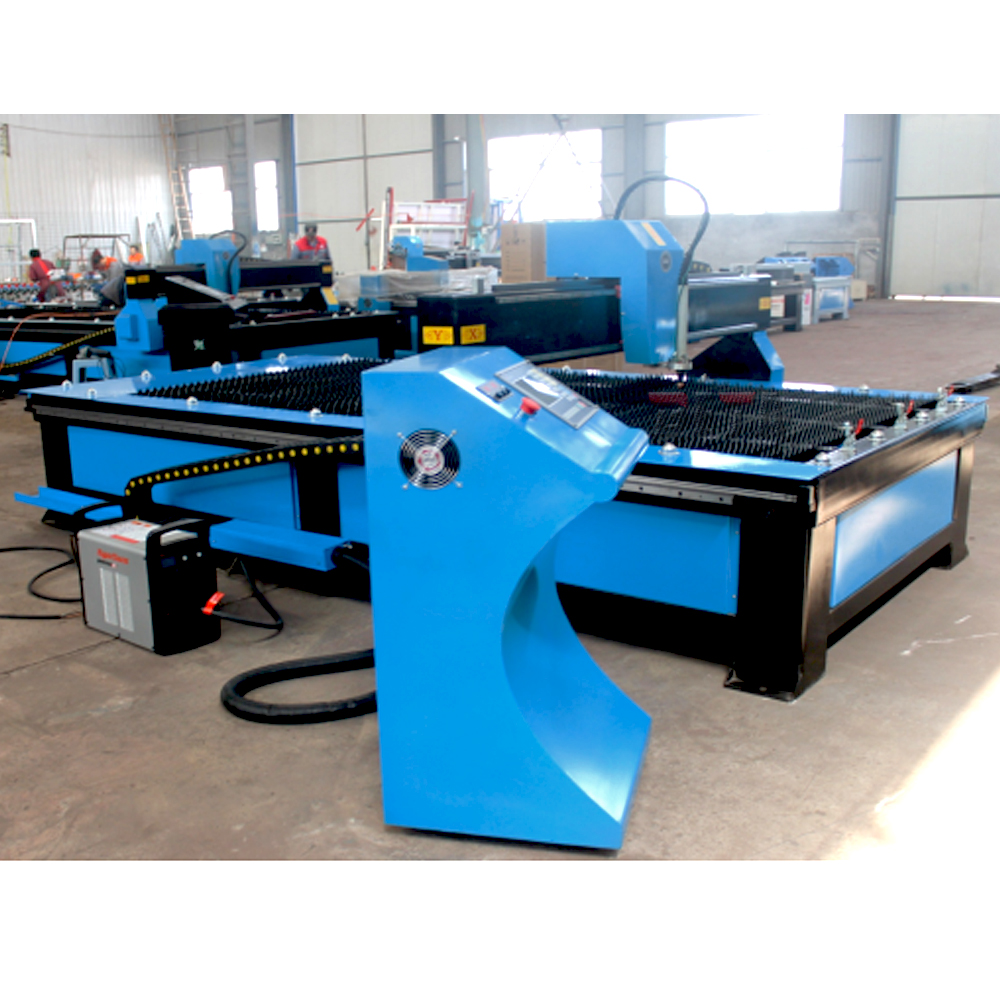

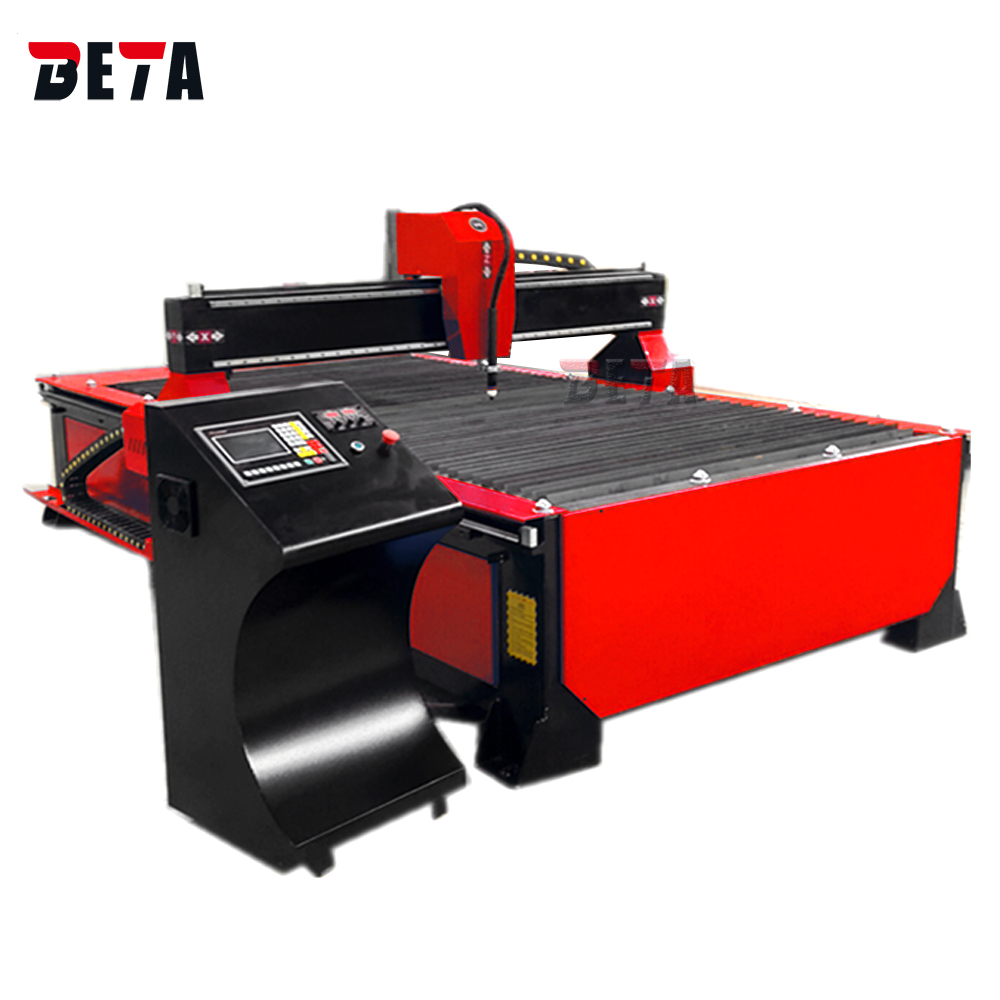

CNC Plasma Cutting Machine
Desktop CNC Plasma Cutting Machine
OEM cutting area range and thickness
Different brand plasma source for your choice
High rigidity and cutting accuracy
  • Features
  • Specification
  • CONFIGURATION

1.Machine mechanics design,Invited the famous university physics professor of the design of the machine,The middle of each beam has a column, strengthen the support of the bed effect. For the magnification, thick, heavy metal plate,Can effectively prevent the middle of the machine due to lack of bearing capacity caused by the deformation of the machine.

2.Our control panel it is big (10 inch ) more easy to check the detail menu and in the control system have many different language , such as  Portuguese , Japanese, Korean, Netherland , Spanish ,Russian ,French .

3.We will free provide 2G processing design , in the 2G processing design have thousand beautiful graphic , after you get the machine, you can let the machine do a lot of beautiful work , while no need find the engineer to help you to design .

4.We all use super soft shielded cable to ensure that the plasma power supply does not affect the motor when the work.

5.we equipped the two fan for take the cutting smoke out from the room , front fan will blow to back , the back fan will exhaust the smoke out from the machine and out from the room . This way ,will efficiency to let the workshop in the good environment .  While other factory does not have this fun or only have one .


Model
1530 200A CNC Plasma cutting machine (high configuration)
X,Y working area
1500x3000mm,  1500x6000mm
Z working area
150mm
Packing dimension
3950mm*2280mm*1850mm
Lathe bed
Very thick steel structure
Machine Power
8.5kw
Working voltage
380V three phase 50hz
Reposition precision
0.02mm
Processing precision
0.1mm
Maximum cutting speed
12000mm/min
Torch Height control mode
Automatic
Cutting thickness
Max 25mm carbon steel
Plasma power supply
LGK120A
Control system
STARfire
Motors
China high precision stepper motor
Software
Starcam
Weight
1400KG
Plasma Air Pressure
Max.0.8Mpa
Working Temperature
-10°C-60°C. Relative Humidity, 0-95%.
LCD Display Dimension
7 Inches


Standard configurations:
1.seamless welding machine body
2.1500*3000mm working area
3.China LGK 200A Plasma source
4.Independent control cabinet
5.STARfire  control system
6.Automatic Torch height controller
7.Starcam software
8.2GB processing file
9.high precision square guide rail
10.high precision ball screw
11.China high precision stepper motor
12.Multi-function tool box
13.10 sets of nozzle electrodes
14.Smoke exhaust system
15.Easy feeding slide material system
16.High quality soft electricity cable can be bend for 1.5 million times
17.All the necessary parts for machine working
